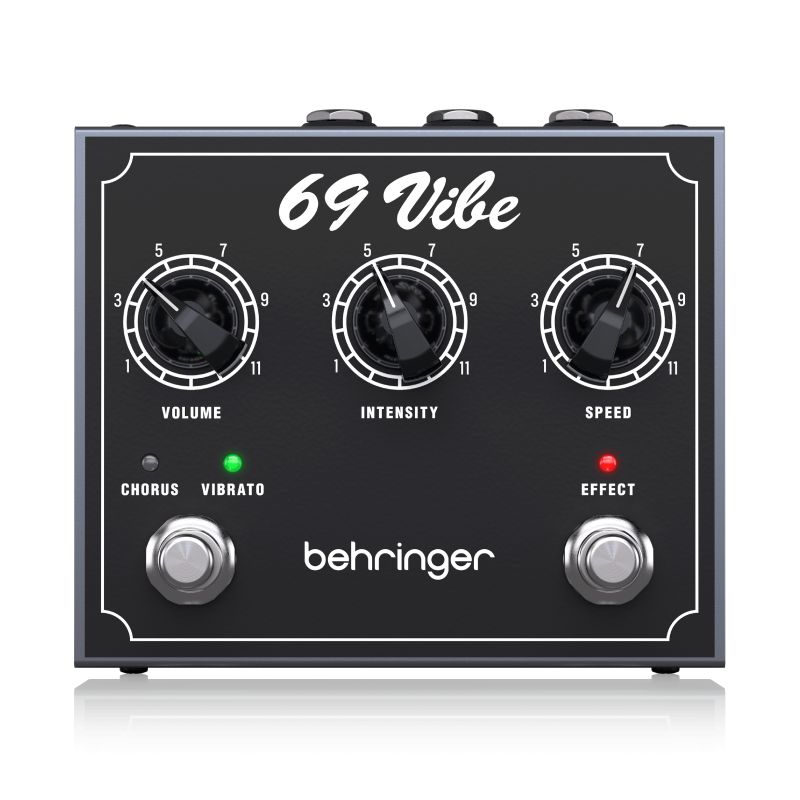

BEHRINGER VINTAGE 69 VIBE PEDAL
The Behringer 69 VIBE (Vintage '69 Vibe Pedal) is an all-analog chorus and vibrato guitar effects pedal engineered to recreate the hypnotic, swirling, Doppler-style modulation of the legendary late-1960s Shin-Ei Uni-Vibe. Designed to deliver the signature liquid pulse and undulating textures popularized by Jimi Hendrix, Robin Trower, and David Gilmour, the 69 VIBE features dedicated footswitches for effect engage and chorus/vibrato mode switching, top-mounted jacks, an external expression pedal input for real-time speed control, and true bypass switching in a road-ready metal housing.
Core Performance Features
-
Authentic Late-'60s Uni-Vibe Modulation: Recreates the phase-shifting, Doppler-esque warble and throb of the original 1969 Shin-Ei circuit, delivering rich, organic modulation that sits between a phaser and a rotating Leslie speaker.
-
Footswitchable Dual Modes (Chorus / Vibrato): Equipped with a dedicated left footswitch to instantly toggle between classic Chorus mode (the signature asymmetrical wet/dry pulse) and pitch-bending Vibrato mode on the fly during live performances.
-
Foot Control Expression Jack: Features a dedicated 1/4-inch expression input to connect an external expression pedal, giving guitarists real-time foot control over modulation sweep speed just like the original vintage units.
-
True Bypass Signal Integrity: Built with true bypass switching circuitry, ensuring zero tone suck or high-frequency loss when the pedal is bypassed.
-
Pedalboard-Friendly Top-Mounted Jacks: Designed with all audio inputs, outputs, expression ports, and power sockets located on the top panel to save horizontal pedalboard real estate and simplify cable routing.
-
Durable Heavy-Duty Metal Chassis: Housed in a vintage-styled, road-tough metal enclosure with retro pointer knobs and high-visibility LED indicators for active status and mode selection.
Technical Layout & Specifications
-
Pedal Type: Vintage Chorus / Vibrato Modulation Stompbox.
-
Bypass Circuitry: True Bypass.
-
Controls:
-
Volume (output level).
-
Intensity (depth of modulation sweep).
-
Speed (rate of modulation).
-
-
Footswitches: 1 x Effect On/Bypass, 1 x Chorus / Vibrato Mode Toggle.
-
Audio Input: 1 x 1/4" (6.35 mm) TS unbalanced.
-
Audio Output: 1 x 1/4" (6.35 mm) TS unbalanced.
-
Expression Input: 1 x 1/4" (6.35 mm) TRS Foot Control / Expression jack.
-
Power Requirements: 9V DC center-negative power supply (such as Behringer PSU-SB) or 9V alkaline battery.
-
Current Draw: Approximately 30 mA to 45 mA.
-
Enclosure: Cast metal chassis with top-mounted jacks and rubber base
