Aston Spirit Microphone

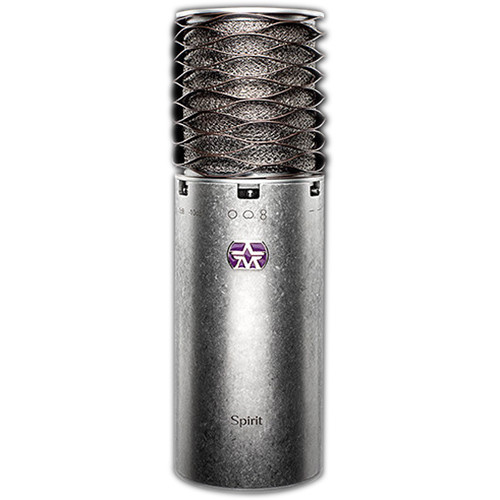

The Aston Spirit is a multi-pattern condenser microphone utilizing a 1" gold-evaporated capsule. A switch on the mic body selects between omni, cardioid, or figure-8 polar patterns. It is versatile enough to use with most instruments, and excels on acoustic guitar and vocals.
he Spirit is designed to deliver an open sound with sparkling harmonics. This accurate microphone provides natural and transparent recording, capturing detail in the high range, but without adding the harshness that some condenser microphones tend to.
The mic has a mesh-knit pop filter built into the wave-form head. The weave allows sound to pass while reducing unwanted plosives. This single-piece mesh cage is formed in stainless steel, so it won't rust with use and can even be removed and washed.
- Custom-molded end caps with integrated XLR and stand adapter
- Harmonized circuit-stage arrangement for easy integration from phantom-power input circuitry to capsule voltage bias
- Non-linear voltage/current-source rectification to provide controlled amplification and smooth/clear audio
Transducer Type - Condenser
Acoustic Operating Principle - Pressure Gradient
Frequency Response 20Hz – 20kHz (+/-3dB)
Equivalent Noise Level 14dB A-Weighted
Sensitivity at 1kHz into 1kohm 23.7mV/Pa
Maximum SPL for THD 0.5% 138dB
Signal-to-Noise Ratio (rel. 94dB SPL) 80dB A-Weighted
Polar pattern - Omni/Cardioid/Figure-of-Eight
Pad Switches -20dB/-10dB/0dB
Low-Cut Filter - 80Hz
