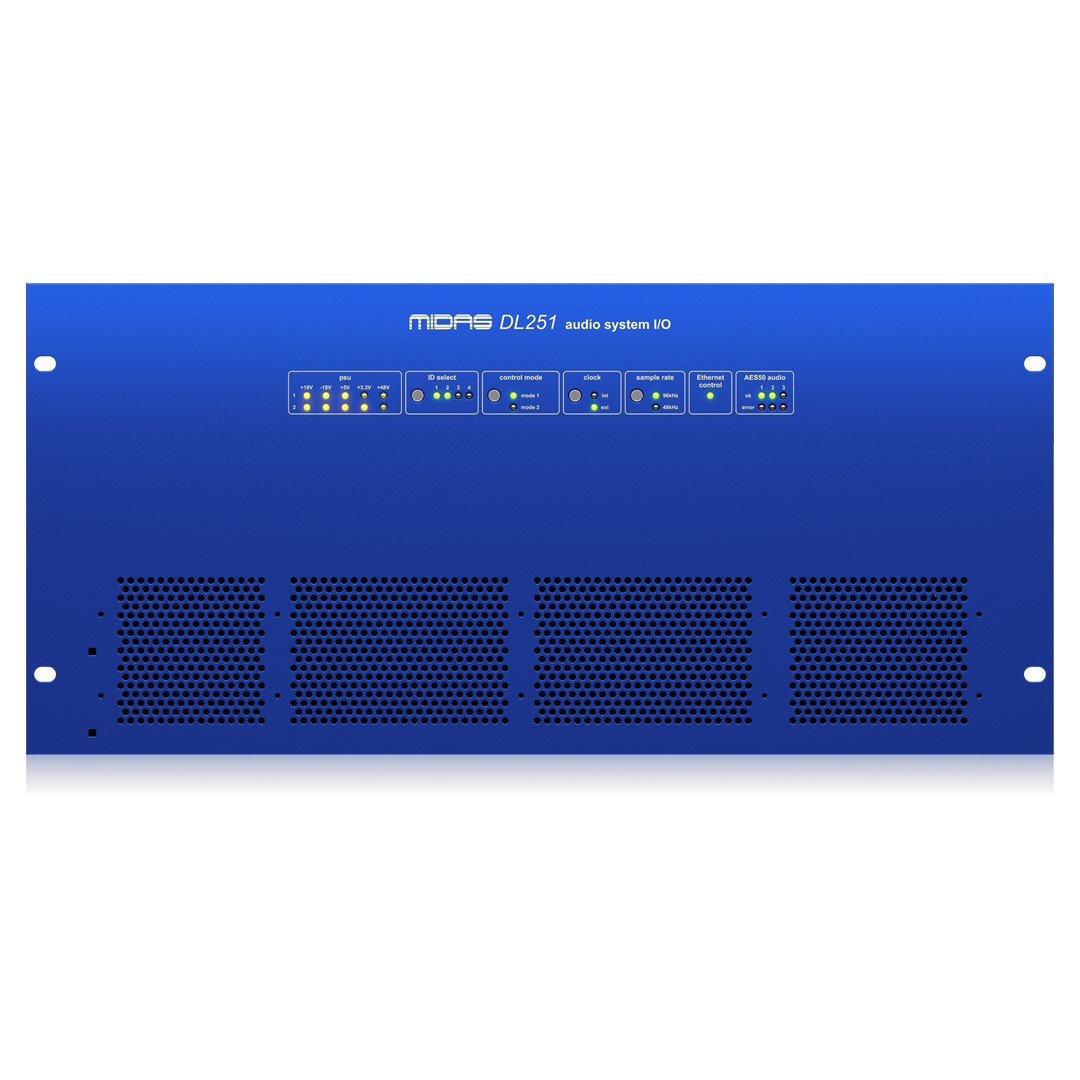

DL251
The Midas DL251 48-Input and 16-Output Stage Box offers exceptional audio quality and robust functionality, making it ideal for both live sound and studio environments. With 48 Midas microphone preamps and 16 outputs, it ensures pristine audio capture and distribution.
Specifications:
- Inputs:
- 48 x Midas microphone preamplifiers with switchable +48 V phantom power
- Outputs:
- 16 x actively balanced low impedance line level outputs
- Sample Rate:
- Selectable operation at 96 kHz or 48 kHz
- Remote Operation:
- Up to 100 meters via CAT5/5e cable
- Configuration:
- All settings programmable from front panel controls or via Midas console
- Network Connectivity:
- 3 x AES50 network ports for redundant connections
- MIDI In, Out, and Thru connectors
- Neutrik etherCON AES50 network ports for reliable connections
- Chassis:
- Rugged 5U rackmount design for durability
- Power Supply:
- Dual redundant auto-ranging universal switch-mode power supplies
- Dimensions:
- Height: 5U (8.74 inches / 222 mm)
- Width: 19 inches (483 mm)
- Depth: 14.37 inches (365 mm)
- Weight:
- Approximately 15.4 kg (34 lbs)
