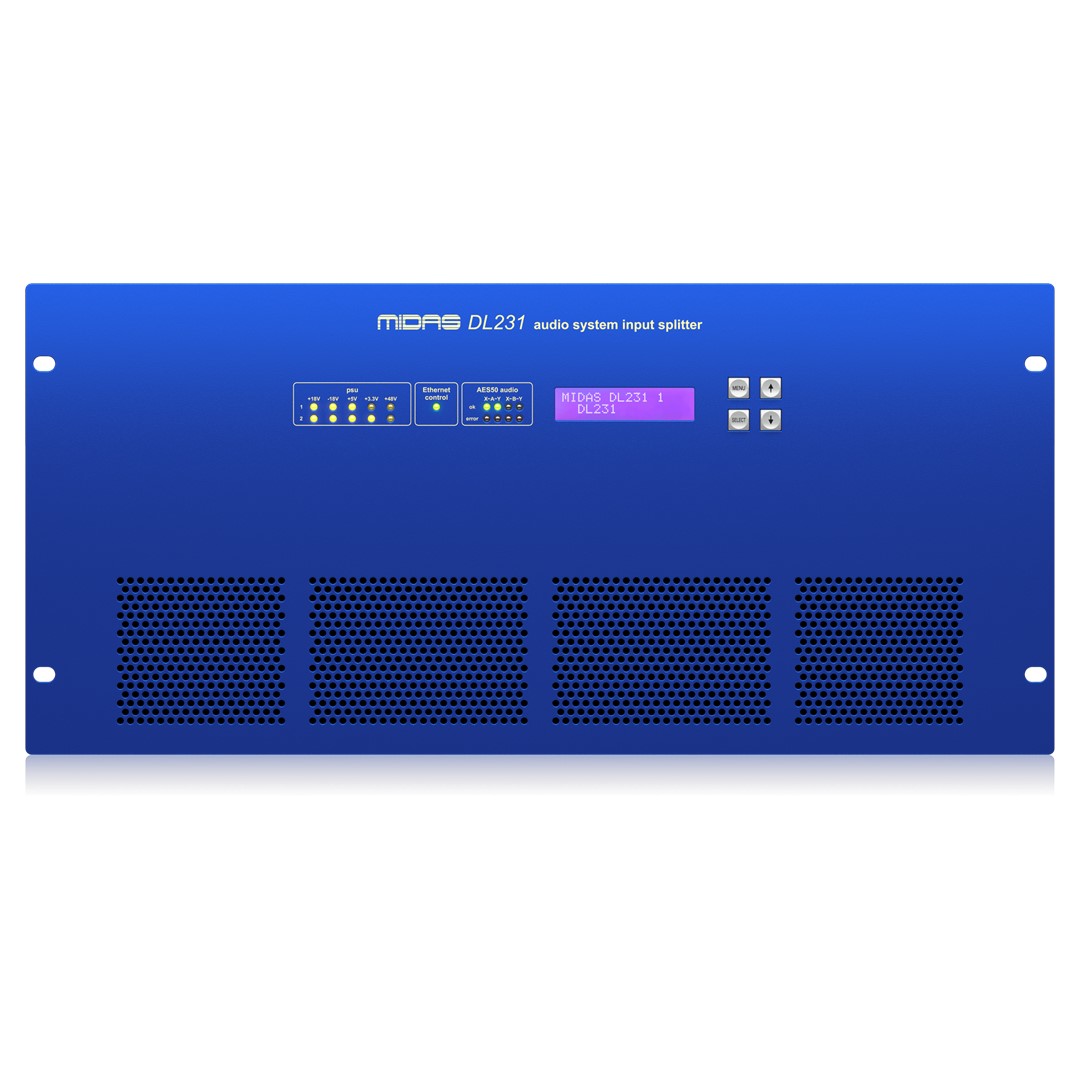

DL231
The Midas DL231 Active Microphone Splitter features 24 inputs, 24 outputs, and two independent Midas microphone preamplifiers per input, offering unparalleled flexibility and functionality for live sound environments. With dual redundant network ports, selectable sample rate operation, and rugged construction, the DL231 delivers exceptional sonic performance and reliability in a road-ready rackmount chassis.
Specifications:
- Inputs: 24 input, 24 output active microphone splitter
- Preamplifiers: 2 award-winning Midas microphone preamplifiers per input with switchable +48 V phantom power
- Network Ports: 2 dual redundant AES50 network ports with independent phase-locked loop synchronization
- Outputs: 24 electronically balanced output channels sourced from microphone preamplifiers or AES50 ports
- Remote Operation: Up to 100 meters via CAT5/5e cable
- Sample Rate: Selectable 96 kHz or 48 kHz sample rate operation
- Settings Configuration: All settings programmable from front panel controls or console
- Display: PSU status indicator LEDs and configuration LCD display on front panel
- MIDI Connectors: MIDI In, Out, and Thru connectors
- Ethernet Ports: Neutrik etherCON AES50 network ports
- Chassis: Rugged 5U rackmount chassis for durability in portable applications
- Power Supply: Dual redundant auto-ranging universal switch-mode power supplies
