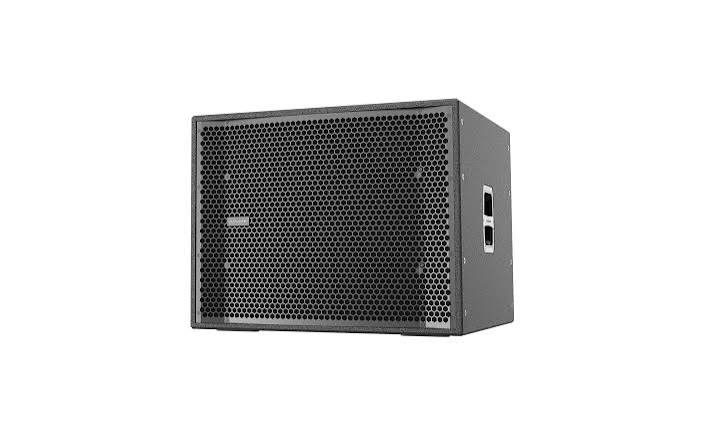

Audiocenter PRO-S5118A
The PRO-S5118A subwoofer comes with 3 presets (80Hz, 100Hz, Cardioid), allowing users to flexibly switch according to different usage scenarios and music styles.
Specifications
|
Type |
Active DSP-controlled Compact Subwoofer |
|
Frequency Response(-10dB) |
30Hz-130Hz |
|
Maximum Calculated SPL/1M (Continuous/Peak) |
129dB/135dB |
|
LF Driver |
Customized 1×18” driver, 4.0” voice coil |
|
DSP |
|
|
Processor |
48kHz signal sampling frequency |
|
Presets |
80Hz, 100Hz, Cardioid |
|
AMPLIFIER |
|
|
Amplifier Circuitry |
Class D |
|
Power (RMS standards) |
1500W |
|
Peak Power |
3000W |
|
Frequency Response(1W 8Ω 2ch) |
20Hz-20kHz(±0.5dB) |
|
Intermodulation Distortion |
＜0.05% |
|
Total Harmonic Distortion |
＜0.05% |
|
Cooling System |
Cooling with fans, air convection |
|
Protection |
DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection |
|
Signal Input |
Female XLR |
|
Signal Output |
Male XLR |
|
Power Input |
Power connector |
|
Working Voltage |
100-240V~(±10%,50/60Hz) |
|
Power consumption (1/8 output power) |
149W |
|
CABINET |
|
|
Cabinet Material |
CNC made of excellent wood |
|
Coating |
Durable Polyurea Coating |
|
Cabinet Color |
Black is the default color. Contact Audiocenter for customization |
|
Grille |
Iron mesh |
|
Handles |
2 side |
|
Pole Mount |
M20 base Φ35mm |
|
Speaker Dimension (W×H×D) |
700x556x655mm |
|
Carton Dimension (W×H×D) |
786x675x741mm |
|
Net Weight |
48.0kg |
|
Shipping Weight |
52.0kg |
