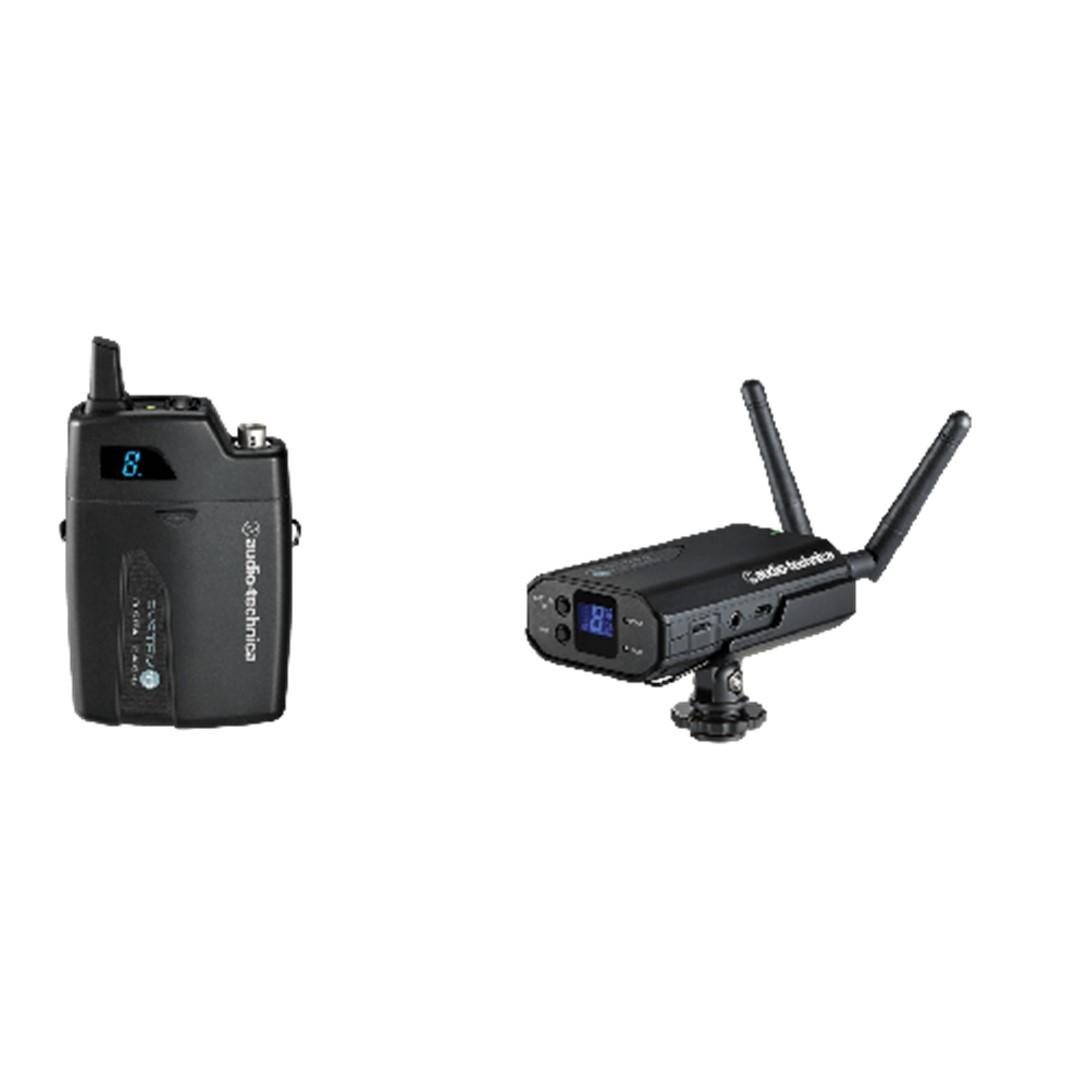

ATW-1701

Specifications:

Overall System

• Operating Frequencies: 2.4 GHz ISM band (2400 to 2483.5 MHz)
• Frequency Response: 20 Hz to 20 kHz (depending on microphone type)
• Operating Range: 30 m (100′) typical in open environments
• Total Harmonic Distortion: <0.05% typical
• Operating Temperature Range: 0° C to +40° C (32° F to 104° F)
• Audio Sampling: 24 bits / 48 kHz

Handheld Transmitter

• RF Power Output: 10 mW
• Battery Type: Two 1.5V AA (not included)
• Battery Life: >7 hours (alkaline, depending on battery type and use pattern)
• Dimensions: 254.8 mm (10.03″) long, 50.0 mm (1.97″) diameter
• Net Weight: 280 grams (9.9 oz) without batteries
• Accessories Included: AT8456a Quiet-Flex™ stand clamp

Body Pack

• RF Power Output: 10 mW
• Battery Type: Two 1.5V AA (not included)
• Battery Life: >7 hours (alkaline, depending on battery type and use pattern)
• Dimensions: 70.2 mm (2.76″) W x 107.0 mm (4.21″) H x 24.9 mm (0.98″) D
• Input Connections: Four-pin locking connector
• Net Weight: 100 grams (3.5 oz) without batteries

Receiver

• Receiving System: Diversity (frequency/time/space)
• Maximum Output Level:
  • 3.5 mm (1/8″) TRS balanced: +6 dBV Dual mono
  • Unbalanced: 0 dBV
• Power Supply: 100-240V AC (50/60 Hz) to 5V DC 0.5A external power supply
• Operating Temperature Range: 40° F (4° C) to 110° F (43° C)
• Dimensions: 56.0 mm (2.20″) W x 91.4 mm (3.60″) H x 27.8 mm (1.09″) D
• Weight: 105 grams (3.7 oz)
• Accessories Included: Two antennas, camera shoe mount, AC adapter (USB-type), USB cable, 3.5 mm (1/8″) stereo cable
• Battery Current/Life: 12 hours (depending on environmental conditions)
• Battery Charging Time: 4 hours 30 minutes (depending on environmental conditions)
• Battery Type: Internal rechargeable 3.7V Li-ion battery (5.5 Wh, 1,460 mAh)
