ATW-2120CIEU

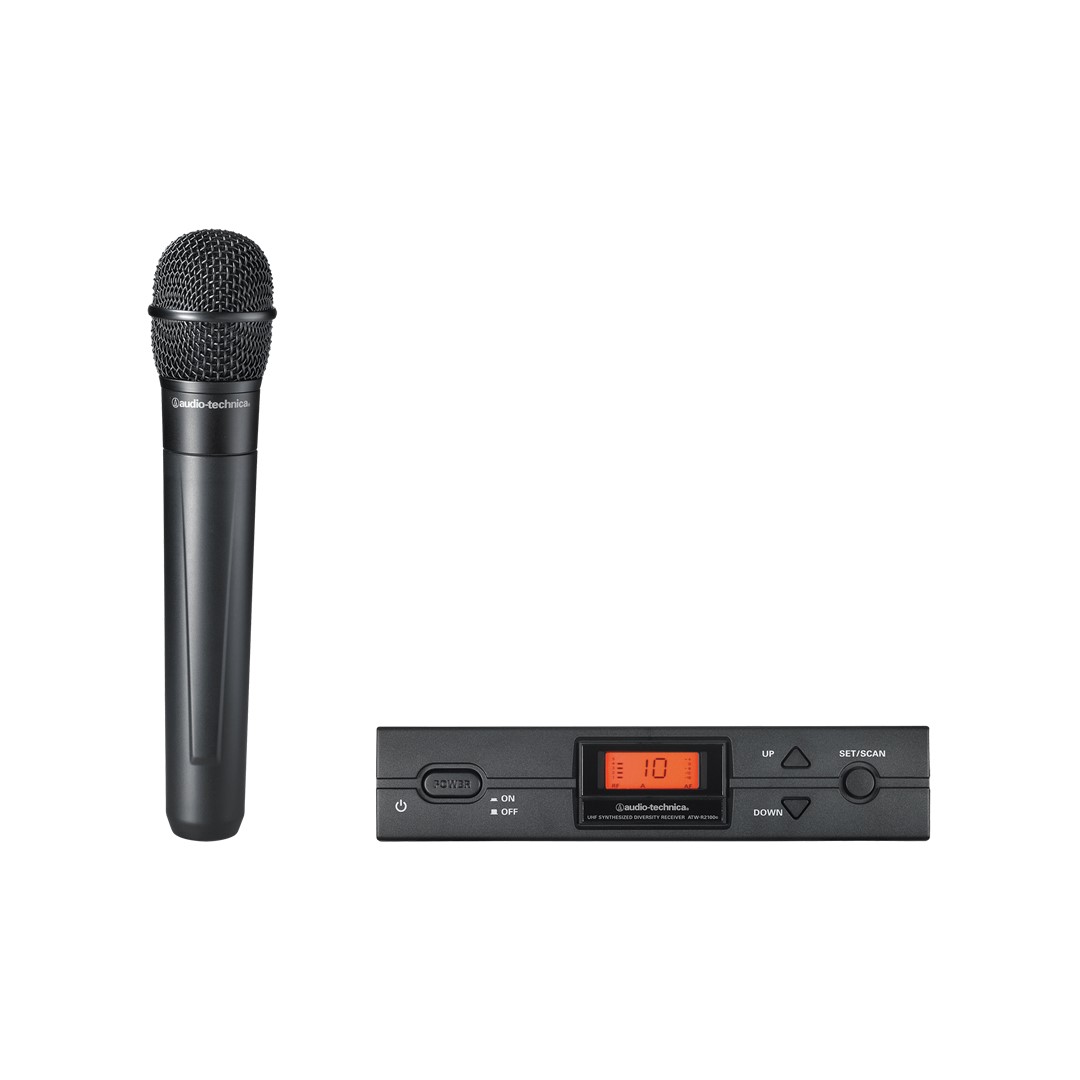

The Audio-Technica ATW-2120CIEU 2000 Series Wireless Handheld Microphone System combines the ATW-R2100c receiver and ATW-T220c handheld cardioid dynamic microphone/transmitter. Operating in UHF Band I (487.125 to 506.500 MHz), it offers a frequency response of 100 Hz to 15 kHz and an operating range of up to 100 meters. With switchable RF power output and extended battery life, this system ensures reliable performance for professional audio applications.
Specifications:
- Operating Frequencies: UHF Band I: 487.125 to 506.500 MHz
- Modulation Mode: FM
- Maximum Deviation: ±40 kHz
- Frequency Response: 100 Hz to 15 kHz (+1 dB, -3 dB)
- Operating Range: 100 m (300′), typical in open environments
- Total Harmonic Distortion: < 1% (at 1 kHz, ±20 kHz deviation)
- Operating Temperature Range: 5º C to 45º C (41º F to 113º F)
- Number of Channels: 10 total
- RF Power Output (Transmitter):
- High: 30 mW
- Low: 10 mW (switchable), at 50 ohms
- Microphone Element: Dynamic cardioid
- Battery Type (Transmitter):
- Two 1.5V AA alkaline (not included)
- Two 1.2V AA NiMH (not included)
- Battery Life:
- High: 7 hours (alkaline)
- Low: 9 hours (alkaline)
- Depending on battery type and use pattern
- Dimensions (Transmitter):
- Length: 232.0 mm (9.13″)
- Diameter: 48.0 mm (1.89″)
- Net Weight (Transmitter): 252 g (8.9 oz), without batteries
- Receiver Type: True diversity
- RF Sensitivity: 20 dBuV at 60 dB S/N ratio (50 ohms termination)
- Maximum Output Level:
- XLR, balanced: +9 dBV
- ¼” (6.3 mm), un
