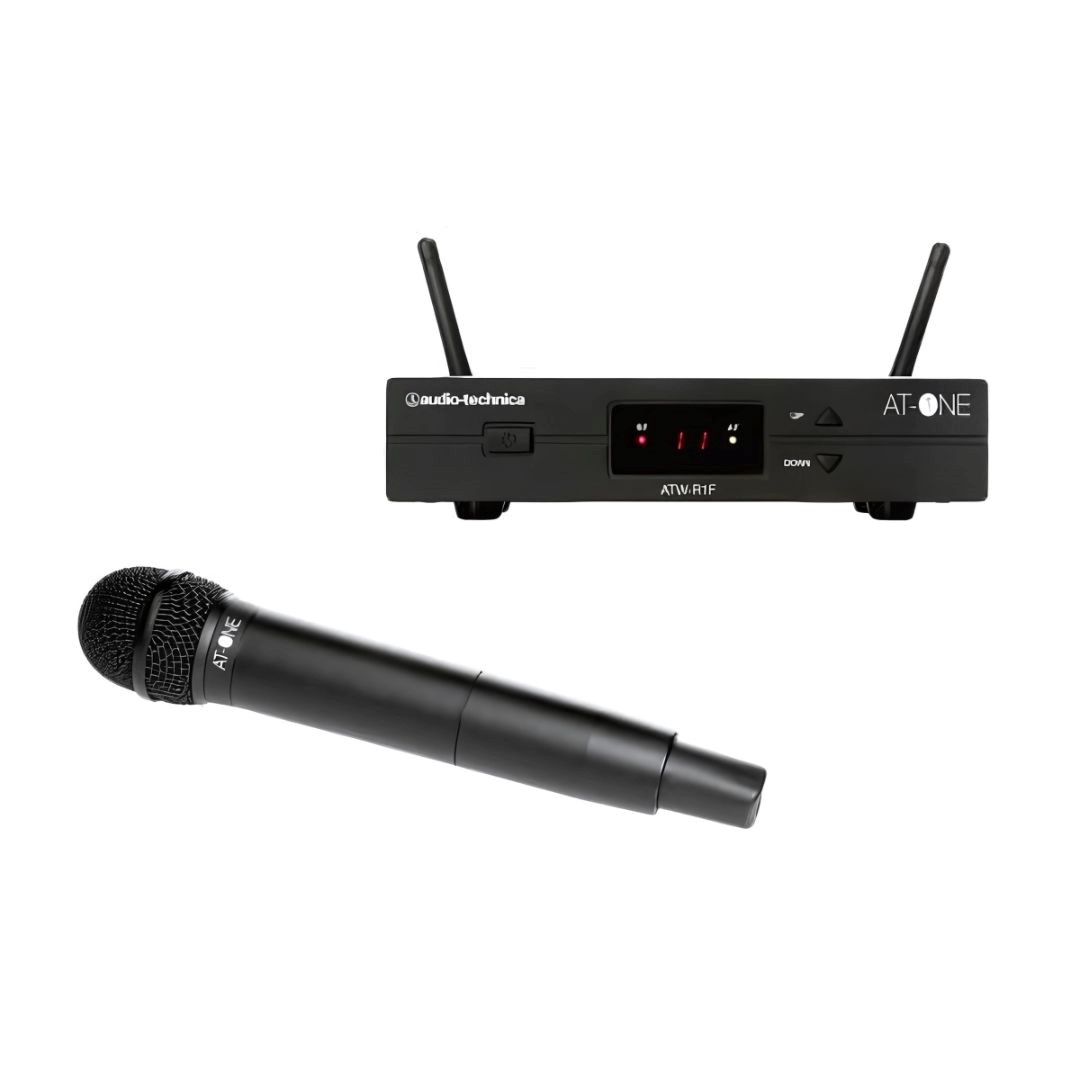

ATW-13DE3
The ATW-13DE3 is part of Audio-Technica's AT-One series, an entry-level UHF wireless system designed to provide reliable and accurate performance without compromising on affordability. This wireless system offers enhanced flexibility with its 2 x 4 channel frequency plan, sturdy construction, and user-friendly interface. Whether for live performances, presentations, or other audio applications, the ATW-13DE3 is your perfect wireless companion, delivering consistent results at an entry-level price point.
Specifications:
Overall System
- Operating Frequencies: DE3 Band: 482 – 512 MHz
- Number of Channels: 2 x 4 frequencies
- Frequency Stability: +/- 0.005%, Phase lock loop frequency control
- Modulation Mode: FM
- Frequency Response: 60 Hz – 16 kHz
- Operating Range: 60m, typical
Receiver
- Receiving System: Antenna switching diversity
- Image Rejection: 55dB minimum
- Dynamic Range: HH: 108 dB, BP 103 dB (@ max deviation)
- Sensitivity: 10dBµV (S/N 60dB @ 20 kHz deviation)
- Total Harmonic Distortion: <1% – 20 kHz deviation @ 1 kHz
- Audio Output Unbalanced: -2dBV
- Audio Output Balanced: 4dBV
- Output Connectors: Balanced: XLRM-type, Unbalanced: 6.3 mm mono jack
- Maximum Output Level: Mic / Line (0 / -20dB)
- Antenna Input: BNC type, 50 – BIAS voltage 12V DC 100mA each
- Dimensions: 200 mm x 42 mm x 122 mm
- Weight: 418 g
Handheld Transmitter
- RF Power Output: 10 mW
- Microphone Element: Condenser Cardioid
- Battery Life: 10 hours (Two 1.5V AA alkaline)
- Dimensions: 268 mm long x 52 mm diameter
- Accessories Included: Stand clamp, transport case, rack mount kit, detachable antennas
