Hybrid+ IM8.4U

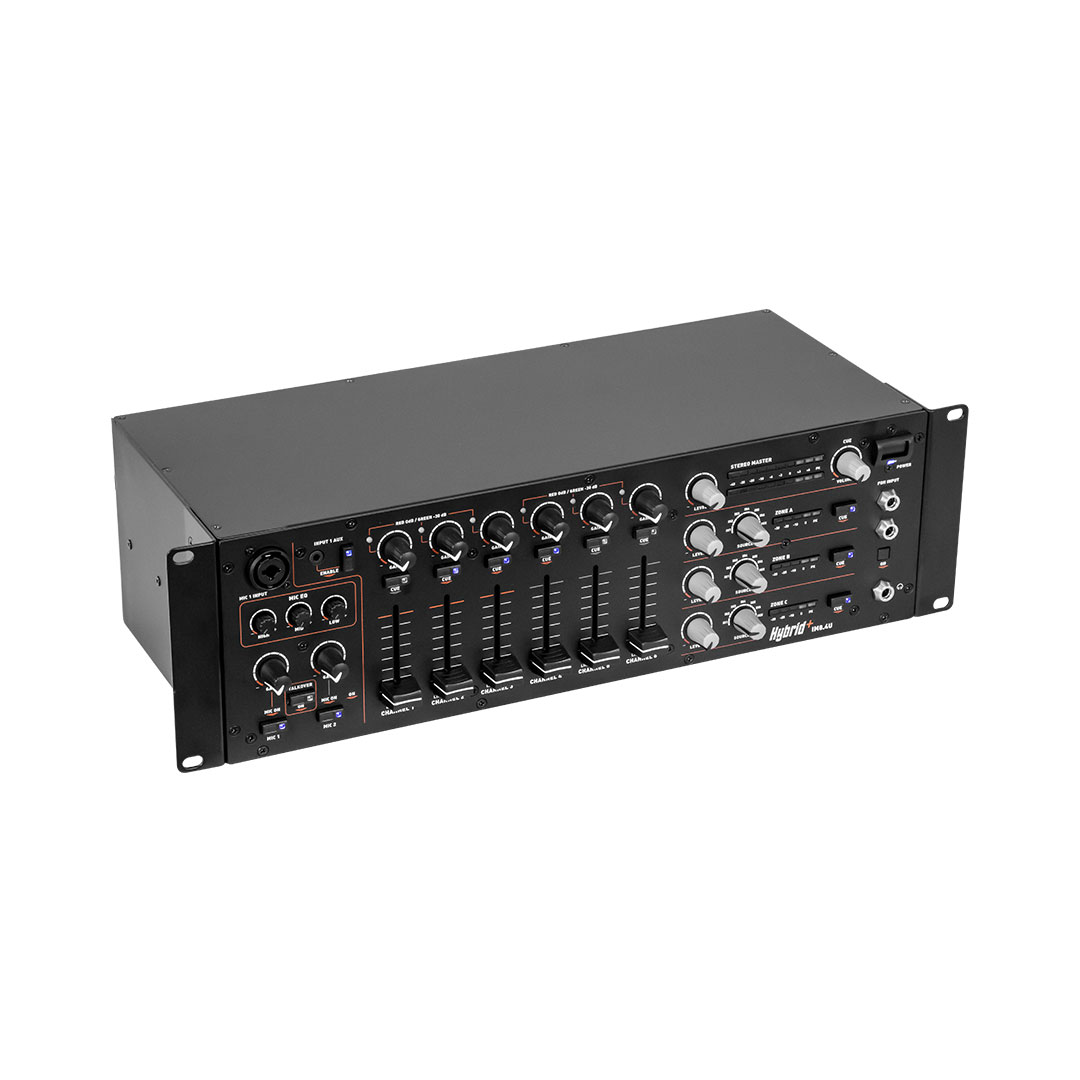

The Hybrid+ IM8.4U is a 6 input, 4 zoned output, 19″ rack mounted, analogue installation mixer, ideal for fixed installations where multiple rooms/zones require different input sources and/or different SPL levels.
- IM8.4U
Installation Mixer
Mic Channel 1: Front panel combo XLR/Jack, Rear panel Jack, Gain Control, On-Off switch, Talk-over Switch
Mic Channel 2: Rear panel Jack, Gain Control, On-Off switch, Talk-over Switch
Mic Channels EQ: Rotary Low, Mid and High
Input Channels 1-6: Rotary gain control, Level faders, PFL switch, Signal LED, Clip LED
Input Channels sources: Rear panel switchable, 6 x Line, 2 x Phono, 1 x USB, 1 x Aux, 1 x FOH
Master Output: Rotary Level control, Dual 10 segment LED signal display, Rear panel EQ (Low, Mid and Hi), Rear panel Level control
Zone Outputs A-C: Source Switch between input channels 1-6 + Mix, Level control, PFL switch, 5 segment LED signal display, Rear panel EQ (Low and Hi), Rear panel level control
Master Output Connection: Stereo balanced line XLR, Unbalanced RCA
Zone A-C Output Connection: Mono balanced line XLR
Construction: Metal casing, 19″ rack mount, 3U rack high
