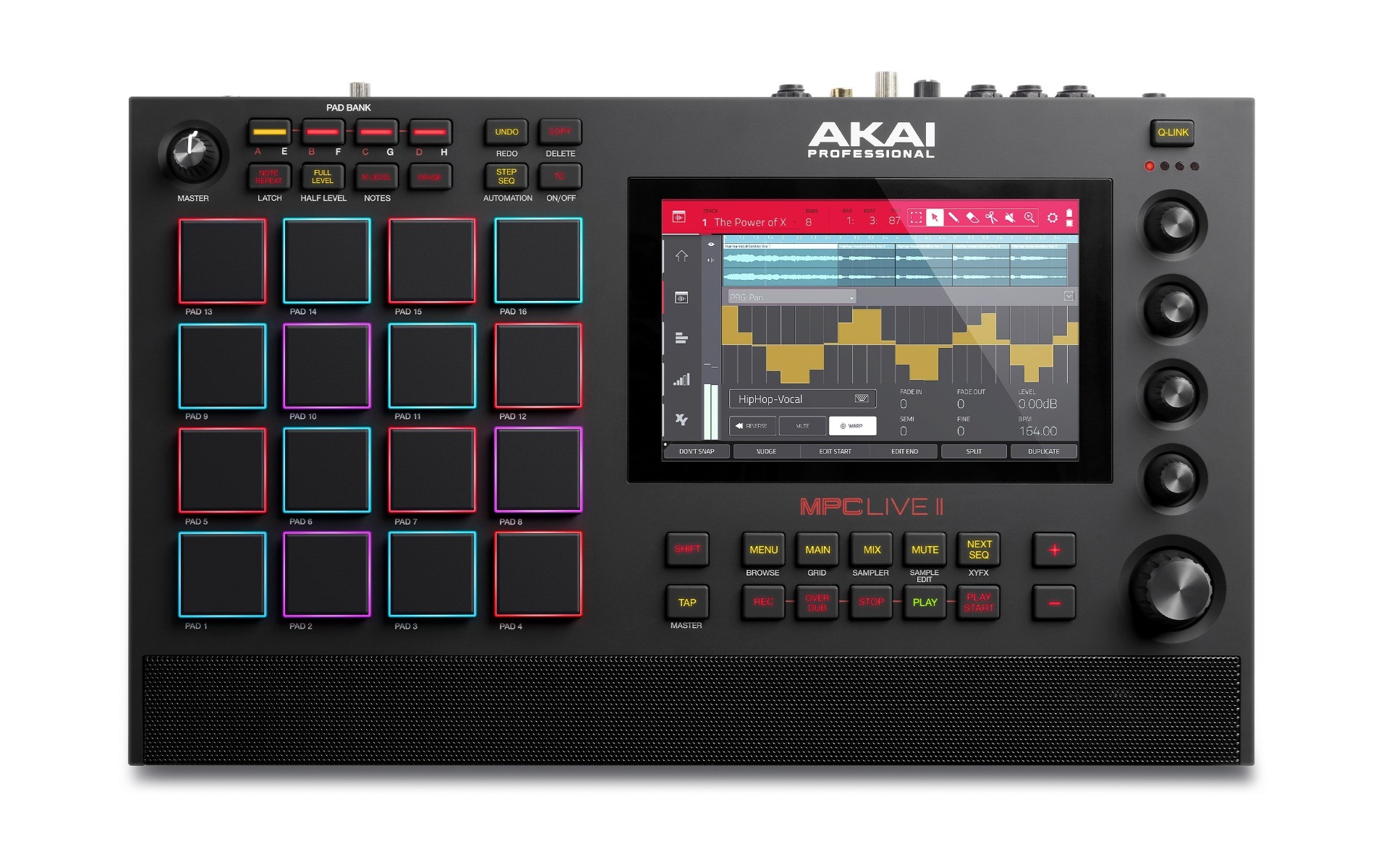

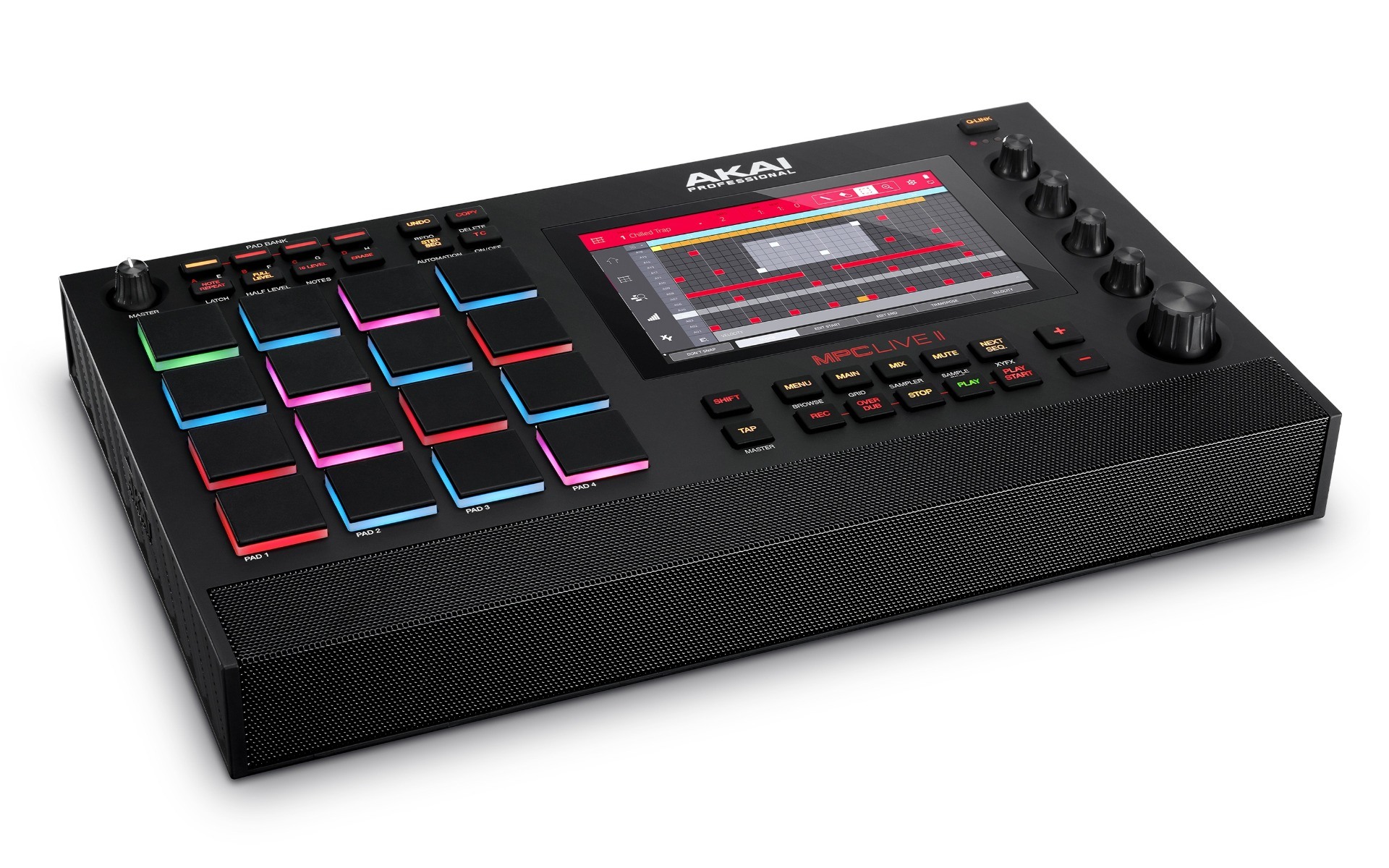

Akai MPC Live II
Designed for fast and intuitive operation, MPC3 accelerates the legendary MPC workflow with new features including Enhanced Main Mode, Linear Song Arrange, Studio Mixer, Advanced Keygroups, XL Channel Strip, and much more.
Pads
- (16) velocity and pressure-sensitive pads, RGB-backlit
- (8) banks accessible via Pad Bank buttons
Knobs
- (4) 360° touch-sensitive Q-Link Knobs
- (4) Q-Link Knob columns accessible via Q-Link button
- (1) 360° encoder for display navigation and selection via push
Buttons
- (27) dedicated function buttons; red, amber, or green backlit
Display
- 6.9” / 176 mm (diagonal)
- 5.9” x 3.7” / 150 x 93 mm (width x height)
- Full-color LED-backlit display with touch interface
CPU
- Quad-core ARM® processor
RAM
- 2 GB
Storage
- 16 GB, expandable via SATA connections

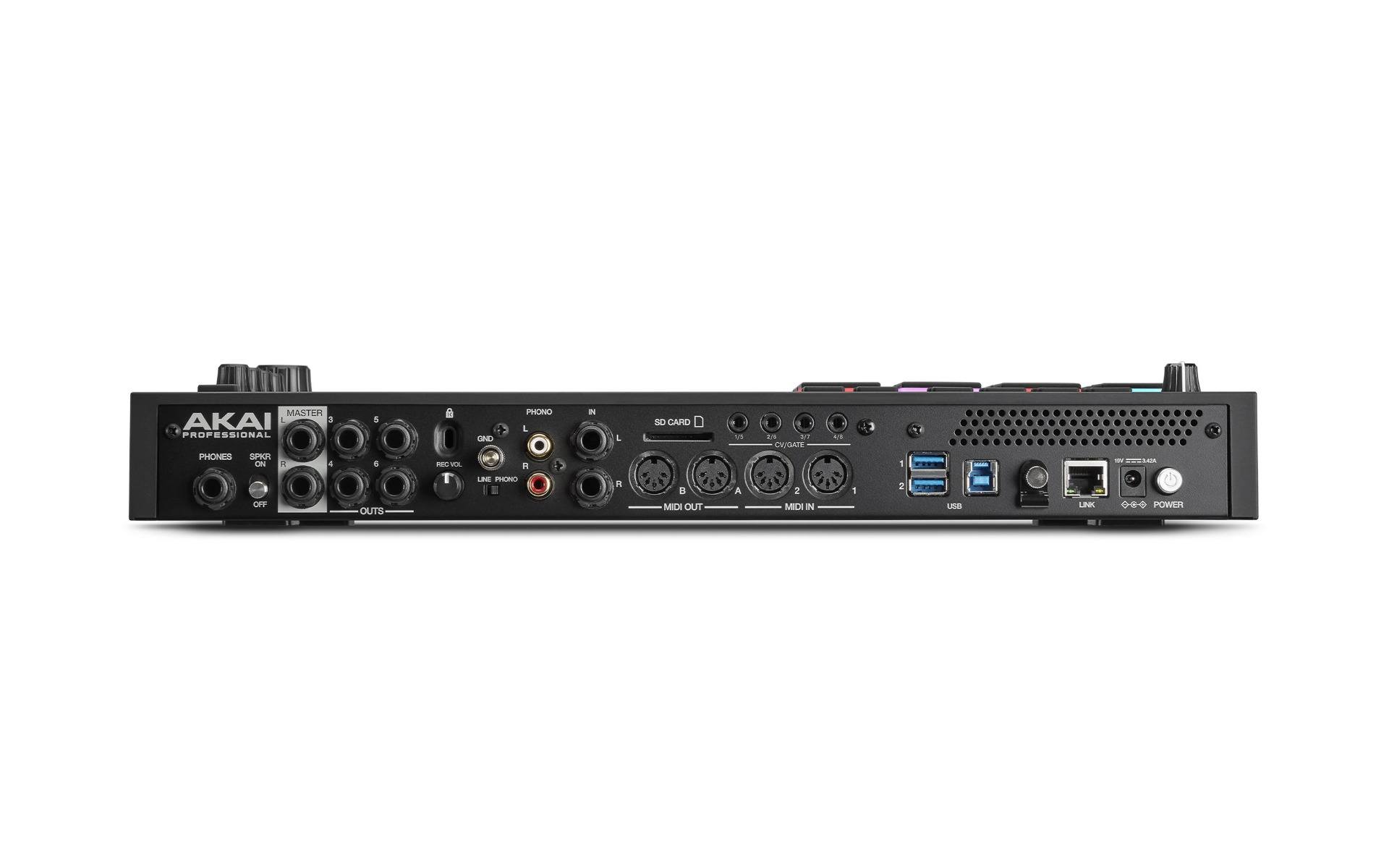

Connections
- (2) 1/4” (6.35 mm) TRS inputs (1 stereo pair)
- (6) 1/4” (6.35 mm) TRS outputs (3 stereo pairs)
- (1) 1/4” (6.35 mm) stereo headphone output
- (2) RCA inputs (1 stereo pair)
- (2) 5-pin MIDI inputs
- (2) 5-pin MIDI outputs
- (4) TRS CV/Gate jacks, 8 outputs total
- (1) Ethernet link port
- (2) USB Type-A ports
- (1) USB Type-B port
- (1) SD Card slot
- (1) Power Adapter input
Power
- Via power adapter: 19 V, 3.42 A, center-positive, included
- Via battery: Up to 5 hours of battery life
Dimensions (width x depth x height)
- 16.2” x 9.6” x 1.8”
- 411.5 x 243.8 x 45.7 mm
Weight
- 7.45 lbs
- 3.38 kg
