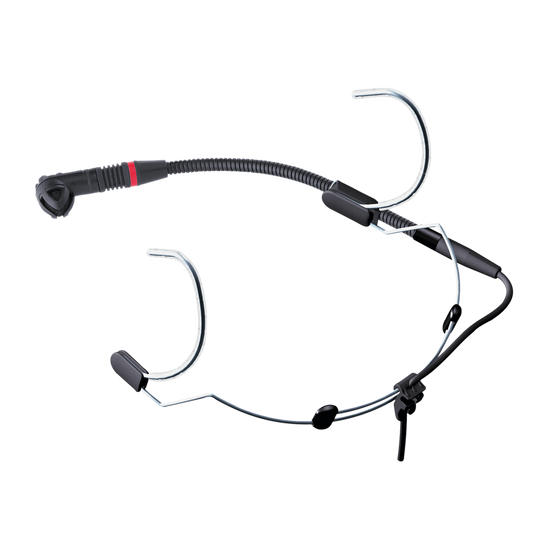

C555 L
The C555 L high-performance head-worn condenser microphone is ideal for handsfree applications, including presentations or onstage performances. The C555 L rests securely and comfortably on the head, and can be attached to the left or right side of the behind-the-neck headband as desired. A transducer shock mount reduces handling noise to a minimum. The moisture shield ensures a high degree of humidity protection for the microphone. The C555 L provides a three-pin mini XLR connector and can be used with all AKG WMS Series body-pack transmitters, B29 L battery power supply, or the MPA VL adapter for external phantom powering.
General Specifications
- Type
- Pre-polarized condenser microphone
- Polar Pattern
- Cardioid
- Frequency Range
- 80 - 20000 Hz
- Sensitivity
- 25 mV/Pa (U=9V, R=10kOhm)
- Impedance @ 1kHz
- <200 Ohms
- Recommended load impedance
- >2000 Ohms
- Max SPL for 1% THD
- 120dB
- Equivalent noise level (IEC 60268-4)
- 30dBA
- Signal to Noise Ratio (@ 94dB SPL)
- 63dBA
- Recommended Serial Resistor
- 10kOhm (2kOhm - 10kOhm)
Dimensions
- Length (mic only)
- 195mm (7.7 in.)
- Max Diameter (mic only)
- 134 mm (5.3 in.)
- Net Weight
- 26g (0.9 oz.)
- Shipping Weight
- 260g (9.2 oz.)
Design
- Finish
- matte black
Audio Output
- Type
- Mini XLR
- Gender
- Female
- Contacts
- 3-pin
- Cable Length
- 1.5m (5 ft.)
Powering Interface
- Current Consumption
- <2mA (<500uA if U-9V, R=10kOhm)
- Operation voltage
- 9V (2V - 10V)
Application
- Live Vocal
- Sports / Fitness
- Assisted Listening
- Sound Reinforcement
- Presentation
- Retail
Instrument
- Vocals
Device
- Headset Microphone
