ATW-3212/C510FG1EU

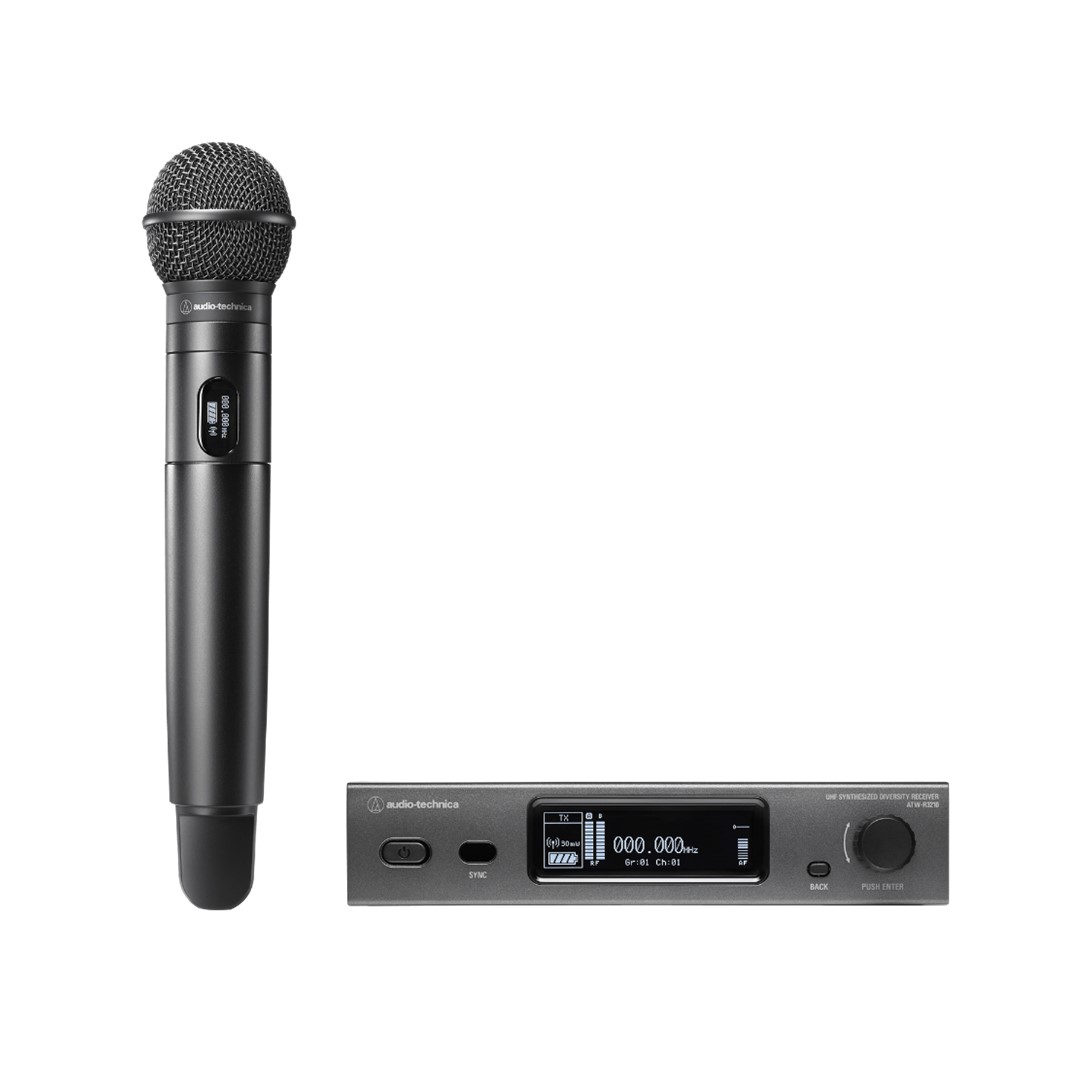

The Audio-Technica ATW-3212/C510 wireless microphone system features a true diversity receiver and an ATW-T3202 handheld transmitter with an ATW-C510 cardioid dynamic microphone capsule. It offers an extensive frequency range with 2395 frequencies in Band DE2 and 2400 frequencies in Band EE1, ensuring reliable performance in crowded environments. With a range of up to 100 meters and a battery life of up to 9 hours, this system provides exceptional audio quality and flexibility for live performances, presentations, and recordings.
Specifications:
- Overall System:
- Operating Frequencies: Band DE2: 470.125 to 529.975 MHz (2395 frequencies); Band EE1: 530.000 to 589.975 MHz (2400 frequencies)
- Minimum Frequency Step: 25 kHz
- Modulation Mode: FM
- Maximum Deviation: ATW-T3201: ±38 kHz; ATW-T3202: ±36 kHz
- Frequency Response: ATW-T3201: 31 Hz to 15,500 Hz; ATW-T3202: 25 Hz to 16,700 Hz
- Operating Range: 100 m (328′)
- Total Harmonic Distortion: <1.0%
- Operating Temperature Range: -5° C to +45° C
- Simultaneous Use: 40 Channels per band (dependent on region)
- Handheld Transmitter:
- RF Power Output: High: 30 mW; Low: 10 mW
- Microphone Capsule: Interchangeable industry standard thread
- Battery Type: Two 1.5V AA (not included)
- Battery Life: High: 8.0 hours (alkaline); Low: 9.0 hours (alkaline)
- Receiver:
- Receiving System: True Diversity
- Image Rejection: 60 dB nominal
- RF Sensitivity: 20 dBuV at 60 dBA S/N ratio
- Maximum Output Level: XLR balanced: +14 dBV
