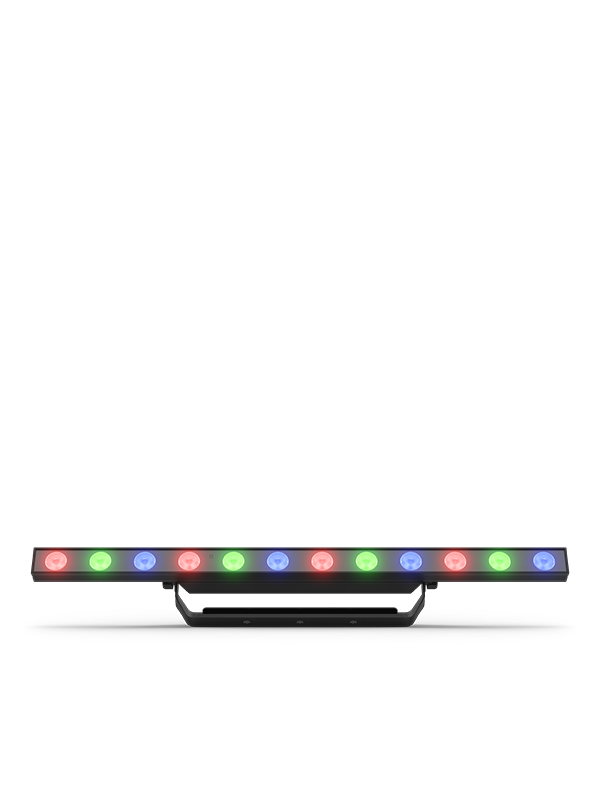

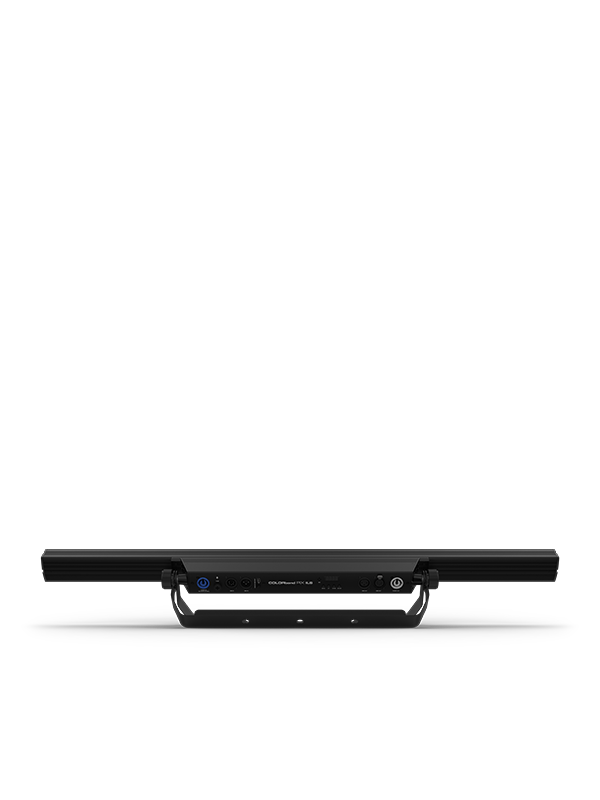

Chauvet COLORband Pix ILS
COLORband Pix ILS is a feature-packed full-size LED strip light functions as a pixel mapping effect, blinder, or wall washer. Its built-in RF receiver offers wireless control using the RFC or RFC-XL optional remotes and compatibility with ILS which makes creating coordinated light shows across different fixture types easy as 1, 2, 3.
- DMX Channels:3, 4, 6, 7, 8, 9, 12, 18, 36 or 41
- DMX Connectors:3- and 5-pin XLR
- Light Source:12 LEDs (tri-color RGB) 3 W (1,000 mA), 50,000 hours life expectancy
- Strobe Rate:0 to 20 Hz
- Beam Angle:14°
- Field Angle:27°
- Illuminance:
(2m): 4,142 lux @ 2 m
(5m): 663 lux @ 5 m - Lumens:1402
- Power Linking:19 units @ 120 V; 35 units @ 230 V
- Power and Current:
49 W, 0.7 A @ 120 V, 60 Hz
48 W, 0.4 A @ 230 V, 50 Hz - Weight:7 lb (3.2 kg)
- Size:38.9 x 2 x 6.2 in (987 x 49 x 157 mm)
- Approvals:CE, MET, UKCA, RoHS
- Cable Length: 5 ft (1.5 m)
- Bracket Mounting Hole: 13 mm
- Optional Controllers: RFC, RFC-XL, DFI-USB
