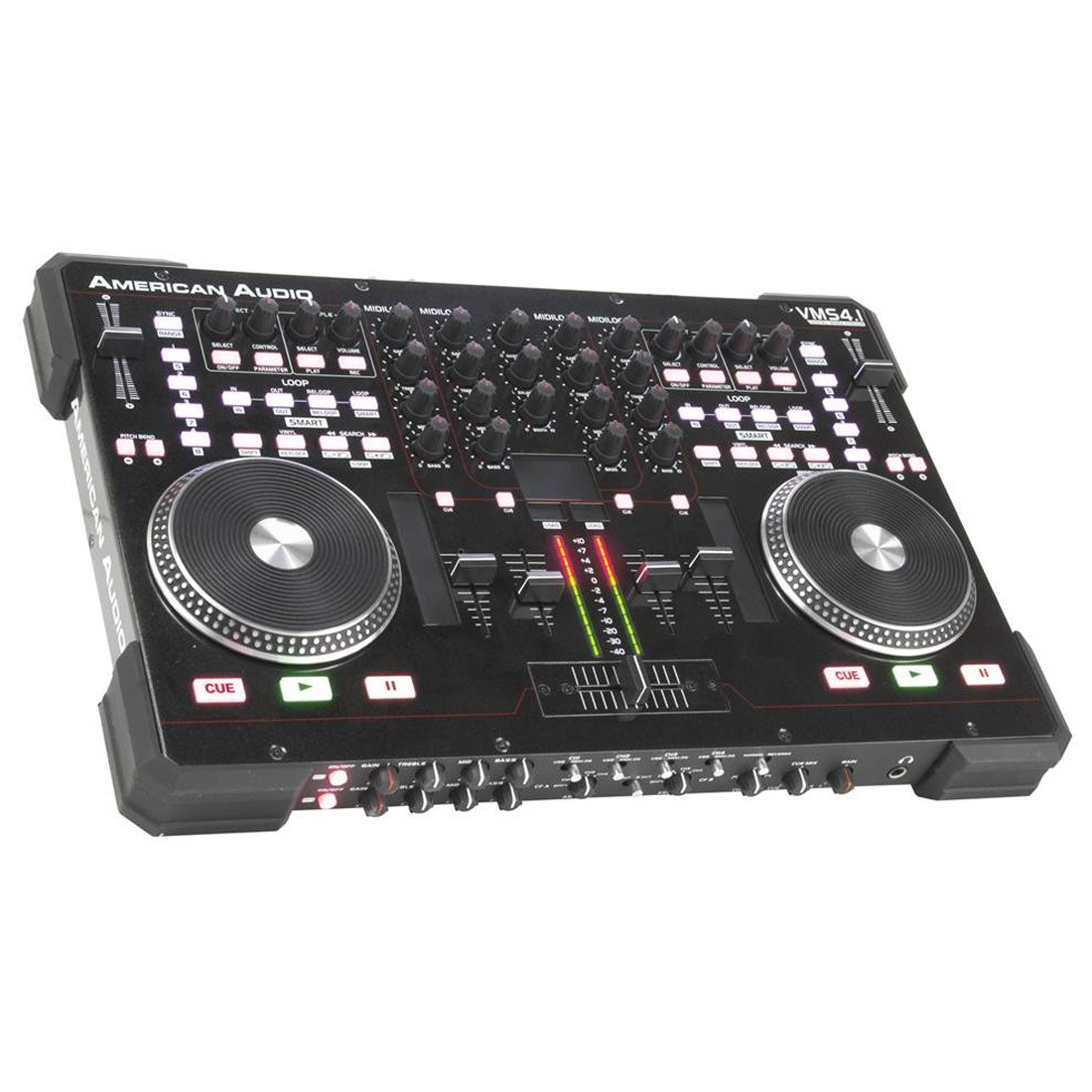

ADJ VMS 4 CONTROLLER

The American Audio VMS4.1 is a 4-Channel Midi Controller that comes bundled with Virtual DJ LE software. The VMS4.1 features four MIDILOG™ Channels (compatible with any “MIDI Software”* or Analog Inputs - such as CD Players, Turntables, etc.), two microphone inputs, Balanced XLR outputs, a 4 In/4 Out Sound Card built-in, and comes with American Audio’s exclusive “DSP D-Core” Audio Engine inside.

The VMS4.1 is designed for performance minded DJs looking for a solid, all-in-one Midi Controller to play MP3 tracks from their laptop, plus have the option to add CD Players and turntables to the mix.

Main Features:
- 4x Midilog™ Channels (Compatible with any "Midi Learn" Software or Analog Inputs - such as CD Players, Turntables, etc.)
- DSP D-Core Inside: Studio Quality Audio Engine + Pro Stage Microphone Circuitry
- 2x Mics with Gain, Treble, Mid & Bass Control
- Crossfader Curve Adjustment
- Balanced XLR Outputs
- Assignable Touch Strips
- Built-in Mouse Pad
- Built-in 4 In/4 Out Soundcard
- Bundled with Virtual DJ LE Software

 General Features:
- Midi Controller with 4 USB / Analog selectable MIDILOG™ (Midi & Analog) channels
- All audio control faders, knobs, switches, and buttons smoothed - eliminates popping, wiper noise, and zipper noise
- On/Off soft startup and turnoff
- Gain/treble/mid/bass EQ on all MIDILOGTM channels
- 2 phono/line selectable analog channels
- Two microphone channels with illuminated on/off switches and gain/treble/mid/bass EQs
- On/off cueing on each MIDILOGTM channel
- Split cueing headphones with rotary mix control
- Illuminated rubber knobs for ease of use in dark environments
- Solid 1.6mm thick faceplate for extra durability
- Panel mounted rotary knobs
- Full analog mixer operation if the computer crashes or with external power supply
- Innofader replaceable crossfader compatible (sold separately)
- Crossfader curve control
- Crossfader assign and reverse
- Q-Start crossfader controlled startup for 2 external audio players
- User replaceable channel faders
- Master and Booth outputs with L/R balance
- Balanced Master outputs
- 12 position stereo master output VU meter
- Dimensions (LxWxH):  482x325x40mm
- Weight:  6 kg.

 Midi Features:
- Built-in mouse pad
- Long life MIDI assignable touch strips
- Two 10- bit resolution pitch sliders
- 62 assignable MIDI buttons and switches
- 50 MIDI buttons have LED illuminations, including 18 with dual blue/red LEDs
- 4 assignable rotary encoders
- 34 assignable rotary controllers
- 5 assignable linear fader controllers
- Dual MIDI controls on all buttons and switches
- Dual 2000 point resolution touch sensitive turntable scratch controllers

 Audio Features:
- 24-bit 48 kHz analog audio
- 16-bit 44.1kHz USB audio
- 10-bit resolution on all analog fader controls
- THD <0.1%*
- Channel separation >60dB*
- S/N ratio >85dB*
- Analog channel audio latency < 1msec
- Selectable USB modes: 4 in 4 out mode for running software effects on phono/line analog channels or 2 in 8 out mode for running 4 software channels and master recording
- 2 msec response on all buttons
- 4 msec response on all rotary and linear faders
- 1 msec USB latency

 * For each audio channel, both line and phono mode

 System Requirements**
 PC Requirements:
- Windows XP Sp2 or Windows Vista (32-bit & 64-bit supported)
- PIV 1.2GHz Computer (SSE2 CPU), AMD 64 or Greater
- 1024_768 SVGA Video
- 2 GIG RAM (Vista)
- 40MB Free on the Hard-Drive (Recommended 2000MB)
- DirectX 9.0

  Mac Requirements:
- Mac OS X 10.5 PPC/Intel, 10.5.6 Intel, or 10.6 Intel
- 1.86GHz
- 2GB RAM
