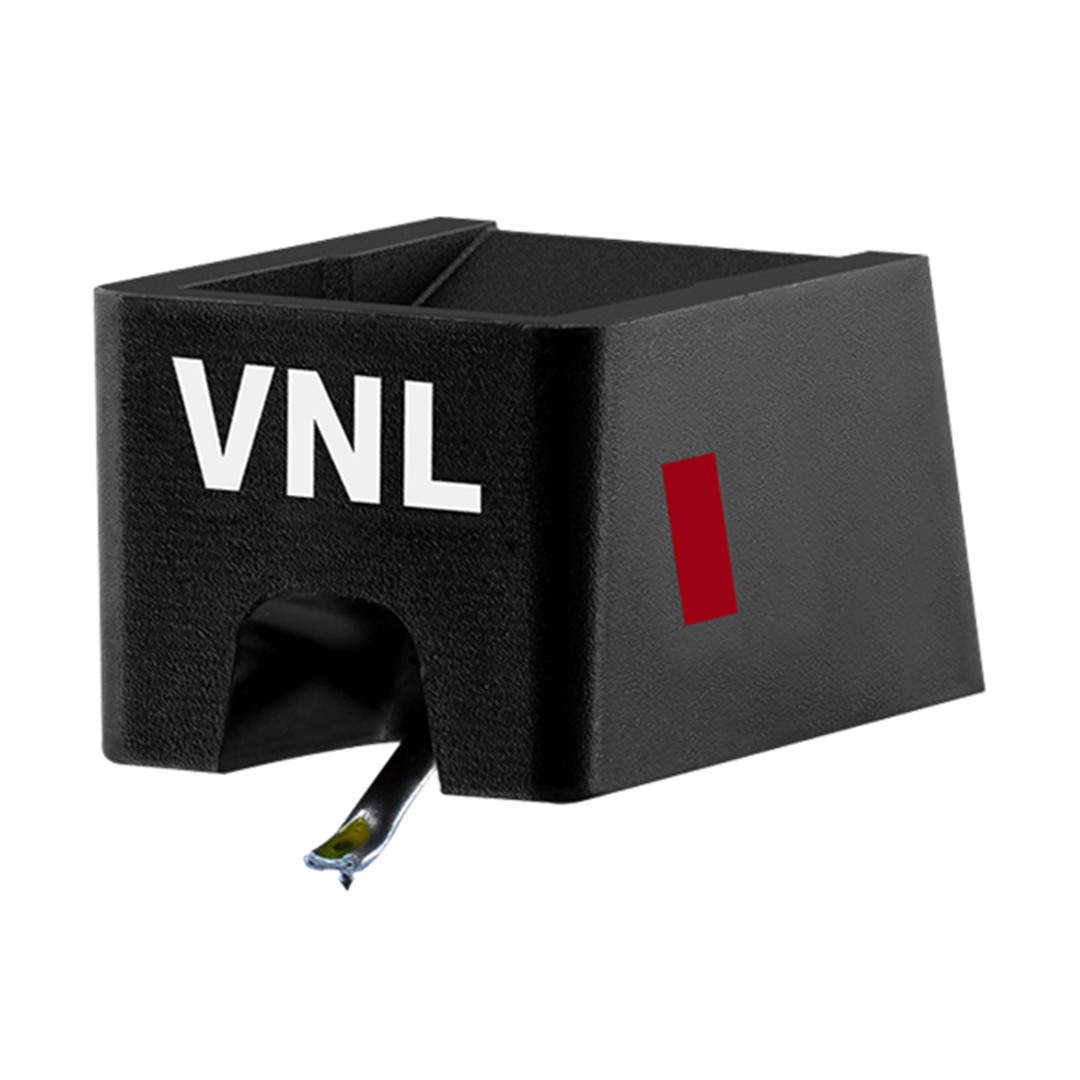

Ortofon STYLUS VNL I
The Ortofon Stylus VNL I (Stylus VNL 1) is a specialized replacement stylus engineered for the Ortofon VNL cartridge body. Distinguished by its flexible suspension compliance (16 μm/mN), the VNL I represents the most compliant and track-receptive model in the modular VNL suspension hierarchy. It is designed specifically for DJs who prioritize elastic groove following, high acoustic compliance, and low record wear during standard cueing, mixing, and moderate backcueing routines.
Core Performance Features
-
Flexible Compliance Rating (16 μm/mN): Delivers the highest mechanical compliance in the original VNL stylus lineup, allowing the cantilever to flex naturally with groove excursions and maintain exceptional tracking fidelity.
-
Low Vinyl Friction & Record Wear: The compliant elastomer suspension paired with a precision spherical diamond tip minimizes downward friction and groove burn during long playback sets and backcueing.
-
VNL Modular Architecture: Designed for quick slide-on replacement on all standard Ortofon VNL cartridge bodies, allowing DJs to easily customize tactile feel and tracking resistance without changing cartridges.
-
Spherical Diamond Profile: Outfitted with an 18 µm spherical tip that sits reliably in the groove microgeometry, ensuring dependable contact on both classic analog vinyl and digital vinyl control records (Serato DJ Pro, rekordbox DVS, Traktor Scratch).
-
Wide Tactile Window: Highly forgiving under moderate tracking forces, making it well-suited for audiophile mixing, radio broadcast, and club DJs who prefer a less rigid feel on the platter.
Technical Layout & Specifications
-
Product Type: Replacement stylus for Ortofon VNL cartridge body.
-
Stylus Profile: Spherical (R 18 µm).
-
Suspension Compliance: Flexible (Dynamic, lateral: 16 µm/mN).
-
Output Voltage: 6 mV (@ 1 kHz, 5 cm/sec, when paired with VNL body).
-
Frequency Response: 20 Hz – 20,000 Hz.
-
Tracking Force Range: 3.0 g – 5.0 g (30 – 50 mN).
-
Recommended Tracking Force: 4.0 g (40 mN).
-
Tracking Ability: 100 µm (@ 315 Hz at recommended tracking force).
-
Color / Identifier: Stylus VNL I (White single indicator line).
