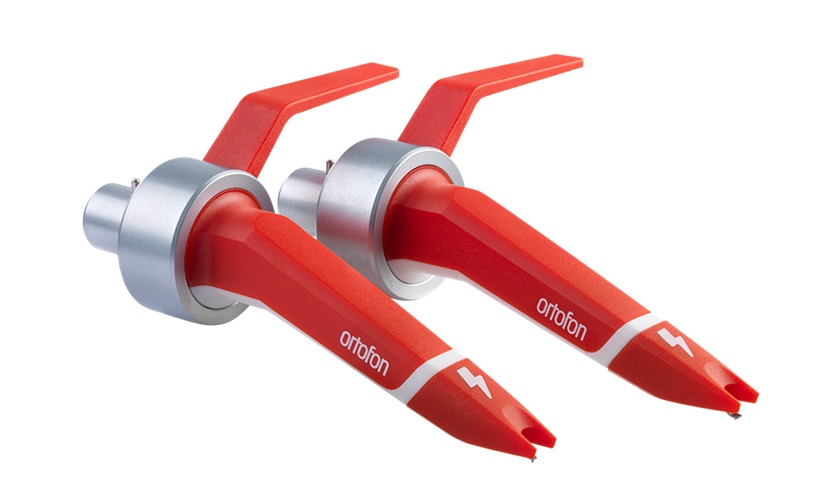

ORTOFON DIGITAL MK2 Twin

Concorde DIGITAL is designed to extend the life of timecode vinyl and minimize errors in decoding.

• At the same time DIGITAL provides optimal output voltage and sound quality for use with conventional vinyl.
• This optimized 10 mV output voltage maximizes the signal-to-noise ratio of the audio being fed to the software, which results in better interpretation of the timecode signal.
• Furthermore, a decrease in the reproduction of frequencies where vinyl wear & crackle occur helps to minimize errors in the interpretation of the timecode signal and helps timecoded vinyl records last longer.

Technical Data

• Output voltage at 1000Hz, 5cm/sec. – 10 mV
• Channel balance at 1kHz – 1 dB
• Channel separation at 1kHz – 22 dB
• Channel separation at 15 kHz – 15 dB
• Tracking ability at 315 Hz at recommended tracking force – 100 μm
• Compliance, dynamic lateral – 14 μm/m N
• Stylus type – Spherical R 18 μm
• Tracking force range – 3 – 5 g
• Tracking force recommended – 4 g
• Internal impedance, DC resistance –  1200 Ohm
• Internal inductance –  850 mH
• Recommended load resistance –  47 kOhm
• Recommended load capacitance –  200-400 pF
• Cartridge weight – 18,5 g
