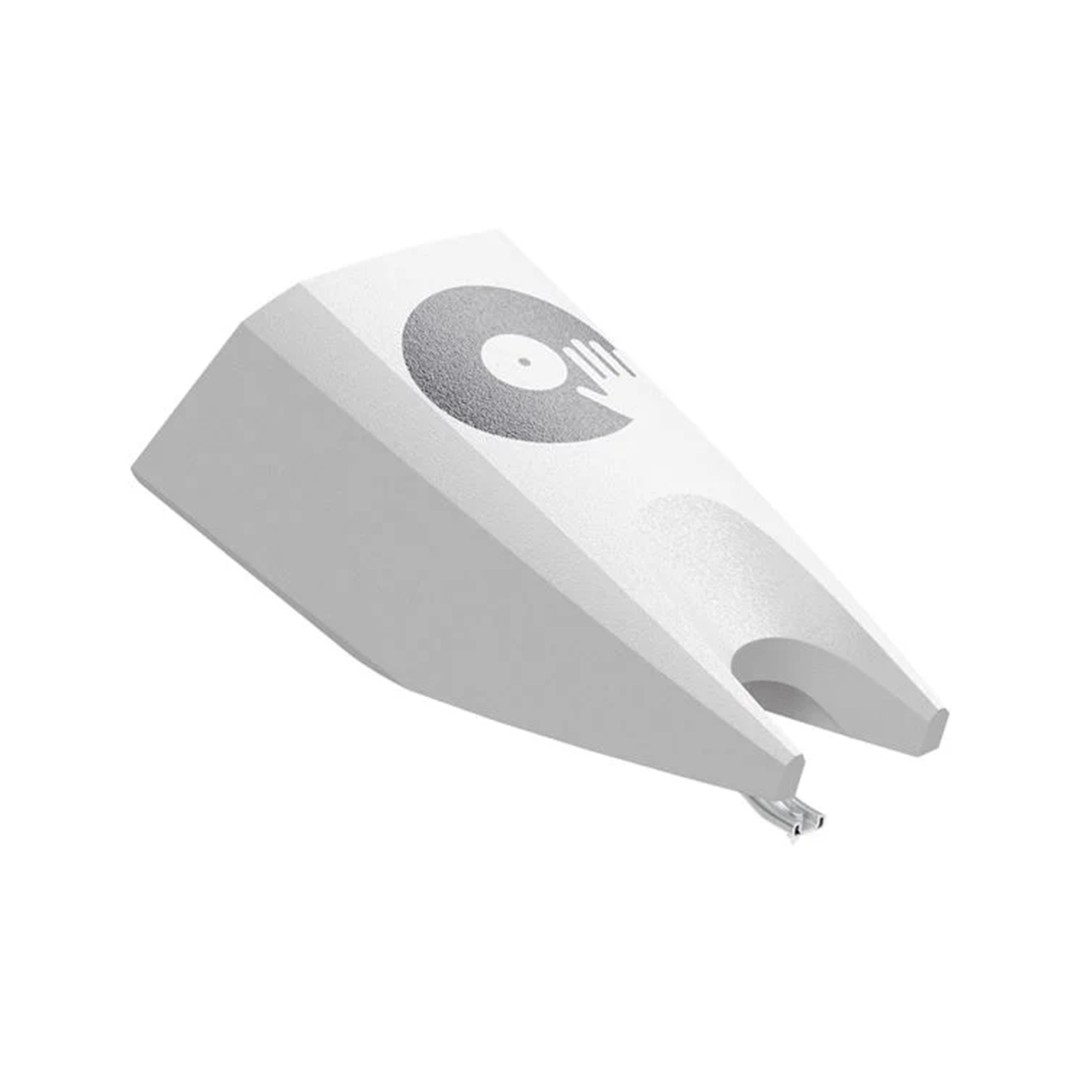

Ortofon STYLUS CC MKII SCRATCH

Core Performance Features

• Maximum 120 µm Tracking Ability: Delivers the highest tracking rating in the Concorde MkII family, engineered to stay firmly planted in the microgroove under aggressive scratching, high-speed backspins, and heavy finger manipulation.

• Ultra-Stiff Battle Suspension: Outfitted with a specialized, extra-firm elastomer damping compound that resists cantilever collapse and eliminates lateral needle wobble during high-torque movements.

• Low-Wear Spherical Diamond: Features a precision spherical diamond tip (R 18 µm) that rides higher in the groove walls, minimizing vinyl burn and groove damage on real wax and timecode control vinyl (Serato DJ Pro, rekordbox DVS, Traktor Scratch).

• High Output Generator Pairing: Tuned to complement the ultra-hot 10 mV generator of the Concorde MkII SCRATCH cartridge body, delivering deep low-end punch and high dynamic range into DJ mixer phono preamps.

• Direct Slide-On Replacement: Features a tactile-click friction fit for tool-free, instant field replacement on the Concorde MkII SCRATCH body (and fully cross-compatible with all Concorde MkII bodies).

• Enhanced Needle-Drop Visibility: Features a wide front stylus cut-out that provides a clear, unobstructed sightline to the diamond tip for pinpoint needle-dropping and cue placement in dimly lit DJ booths.

Technical Layout & Specifications

• Product Type: Replacement stylus for Ortofon Concorde MkII SCRATCH cartridge body.

• Stylus Profile: Spherical (R 18 µm).

• Output Voltage: 10 mV (@ 1 kHz, 5 cm/sec, when paired with SCRATCH body).

• Frequency Response: 20 Hz – 18,000 Hz.

• Tracking Force Range: 3.0 g – 5.0 g (30 – 50 mN).

• Recommended Tracking Force: 4.0 g (40 mN).

• Tracking Ability: 120 µm (@ 315 Hz at recommended tracking force).

• Compliance, Dynamic Lateral: 14 µm/mN.

• Color / Identifier: White body with black accent and SCRATCH branding.
