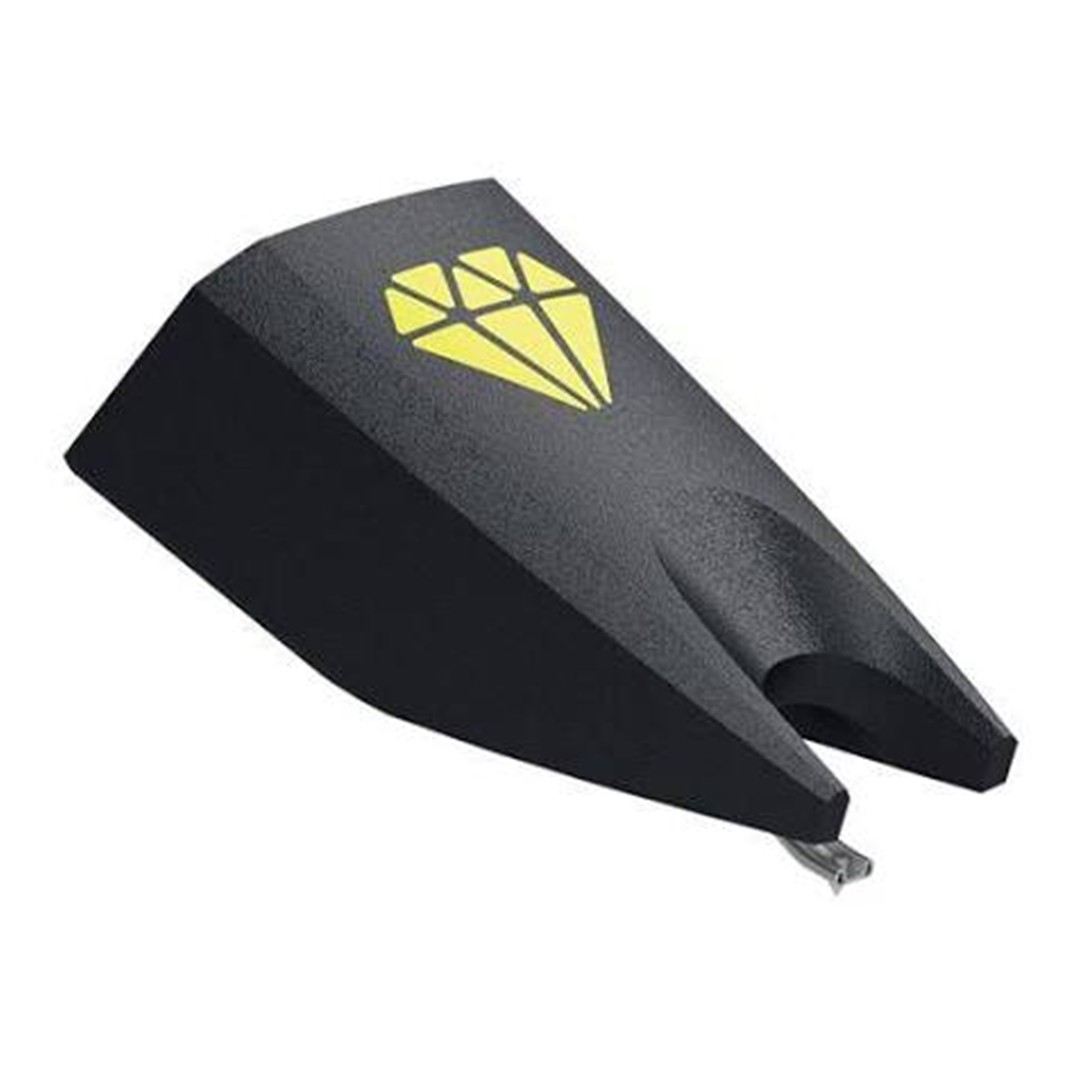

Ortofon STYLUS CC MKII CLUB
The Ortofon Stylus Concorde MkII CLUB (Stylus CC MkII CLUB) is the official replacement stylus for the Ortofon Concorde MkII CLUB cartridge body. Engineered specifically for resident club DJs, broadcast studios, audio archivists, and vinyl selectors, it stands apart from standard spherical DJ styli by utilizing a Special Elliptical diamond profile (r/R 13/25 µm). This profile makes broader, deeper contact with the record groove microgeometry, unlocking superior high-frequency extension, clear stereo separation, and transparent acoustic resolution while maintaining the structural durability required in high-SPL booth environments.
Core Performance Features
-
Special Elliptical Diamond Profile: Features an elliptical cut (r/R 13/25 µm) designed to follow complex high-frequency modulations more accurately than spherical tips, delivering articulate highs, expansive soundstaging, and lower harmonic distortion.
-
Audiophile Acoustic Voicing: Tuned for maximum fidelity, rich low-end control, and transparent midrange, making it well-suited for big club sound systems, home hi-fi listening, and high-resolution vinyl digitization.
-
Optimized for High Output: Designed to pair with the CLUB's 8 mV generator, delivering a healthy signal into DJ mixers and phono preamps to keep preamp gain and line noise low.
-
Direct Slide-On Replacement: Features a snug, friction-fit design with tactile seating feedback that slides directly onto the Concorde MkII CLUB body (as well as backwards-compatible across all Concorde MkII bodies).
-
Enhanced Needle-Drop Sightline: Constructed with a wide front cut-out window that gives DJs a clear, direct view of the diamond tip for pinpoint needle-dropping and cueing in dark booths.
-
DVS & Analog Playback: Fully compatible with both traditional analog pressings and digital vinyl control records (Serato DJ Pro, rekordbox DVS, Traktor Scratch).
Technical Layout & Specifications
-
Product Type: Replacement stylus for Ortofon Concorde MkII CLUB cartridge body.
-
Stylus Profile: Special Elliptical (r/R 13/25 µm).
-
Output Voltage: 8 mV (@ 1 kHz, 5 cm/sec, when paired with CLUB generator).
-
Frequency Response: 20 Hz – 20,000 Hz (-3 dB).
-
Tracking Force Range: 2.0 g – 4.0 g (20 – 40 mN).
-
Recommended Tracking Force: 3.0 g (30 mN).
-
Tracking Ability: 100 µm (@ 315 Hz at recommended tracking force).
-
Channel Separation: 25 dB (@ 1 kHz).
-
Compliance, Dynamic Lateral: 14 µm/mN.
-
Color / Identifier: Black body with bright yellow accent and CLUB branding.
