Ortofon CC MKII TWIN SCRATCH
The Ortofon Concorde MkII Twin SCRATCH is a dedicated two-cartridge turntablism package engineered specifically for battle DJs, scratch performers, and turntablist routines across two decks. Outfitted with matched Concorde MkII SCRATCH cartridges inside a protective flight case, this set pairs an ultra-high 10 mV output voltage with reinforced cantilever dampening to deliver maximum groove-tracking stability, deep bass punch, and skip resistance during high-speed cuts, juggling, and aggressive backcueing.
Core Performance Features
-

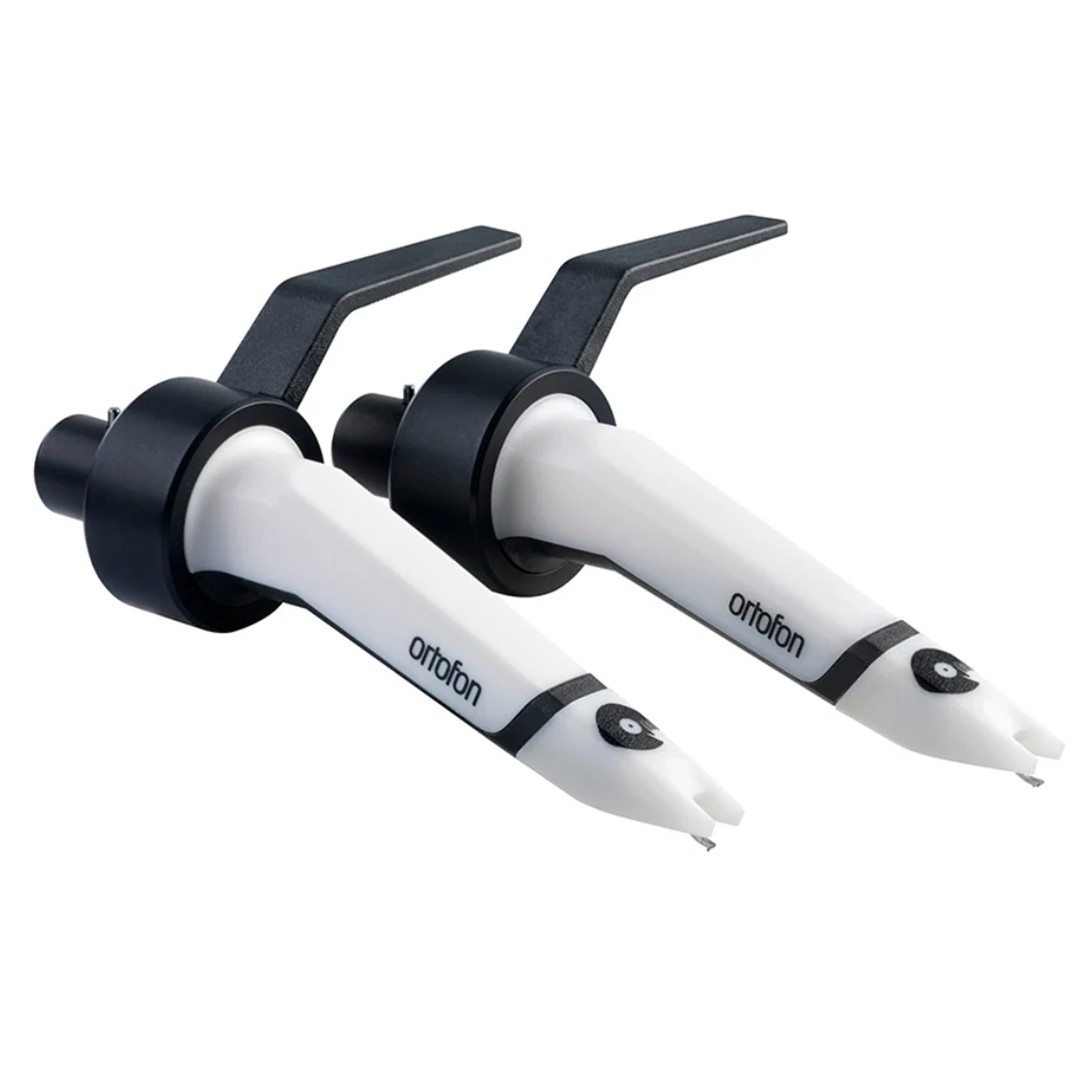

Complete Dual-Deck Battle Package: Supplies two factory-matched Concorde MkII SCRATCH cartridges complete with pre-fitted styli, ready for dual-turntable setups out of the box.
-
Protective Aluminum Flight Case: Delivered inside a foam-padded aluminum hard case with a secure latch, safeguarding styli and cantilevers against impact during travel between battles and club gigs.
-
Massive 10 mV Output Level: Pumps out an ultra-hot 10 mV signal designed to drive phono preamps hard, delivering maximum dynamic impact, punchy low frequencies, and exceptional signal-to-noise ratio.
-
Maximum Scratch Tracking Ability: Outfitted with an extra-stiff, reinforced cantilever suspension tuned to resist skipping during rigorous scratching, fast backcueing, and heavy finger manipulation.
-
Low-Wear Spherical Diamond: Features a precision spherical diamond tip that rides higher in the groove microgeometry, significantly minimizing vinyl burn and groove wear on real wax and timecode control vinyl.
-
Direct SME Tonearm Mounting: The one-piece Concorde design mounts directly into standard S-shaped SME-bayonet tonearm sockets without headshells, screws, lead wires, or alignment tools.
-
Replaceable Ergonomic Finger Lift: Wide, textured finger lift provides secure tactile control and grip in dimly lit booths, engineered for quick replacement if damaged.
Technical Layout & Specifications
-
Package Contents: 2 x Ortofon Concorde MkII SCRATCH cartridges (with styli), 1 x Stylus brush, 1 x Aluminum flight case.
-
Cartridge Type: Moving Magnet (MM).
-
Mounting Connection: Direct SME 4-pin bayonet.
-
Stylus Profile: Spherical (R 18 µm).
-
Output Voltage: 10 mV (@ 1 kHz, 5 cm/sec).
-
Frequency Response: 20 Hz – 18,000 Hz.
-
Tracking Force Range: 3.0 g – 5.0 g (30 – 50 mN).
-
Recommended Tracking Force: 4.0 g (40 mN).
-
Tracking Ability: 120 µm (@ 315 Hz at recommended tracking force).
-
Channel Separation: 22 dB (@ 1 kHz).
-
Internal Impedance / DC Resistance: 1,200 Ohms.
-
Internal Inductance: 850 mH.
-
Recommended Load Resistance: 47 kOhms.
-
Recommended Load Capacitance: 200 – 400 pF.
-
Cartridge Weight (Each): 18.5 g.
