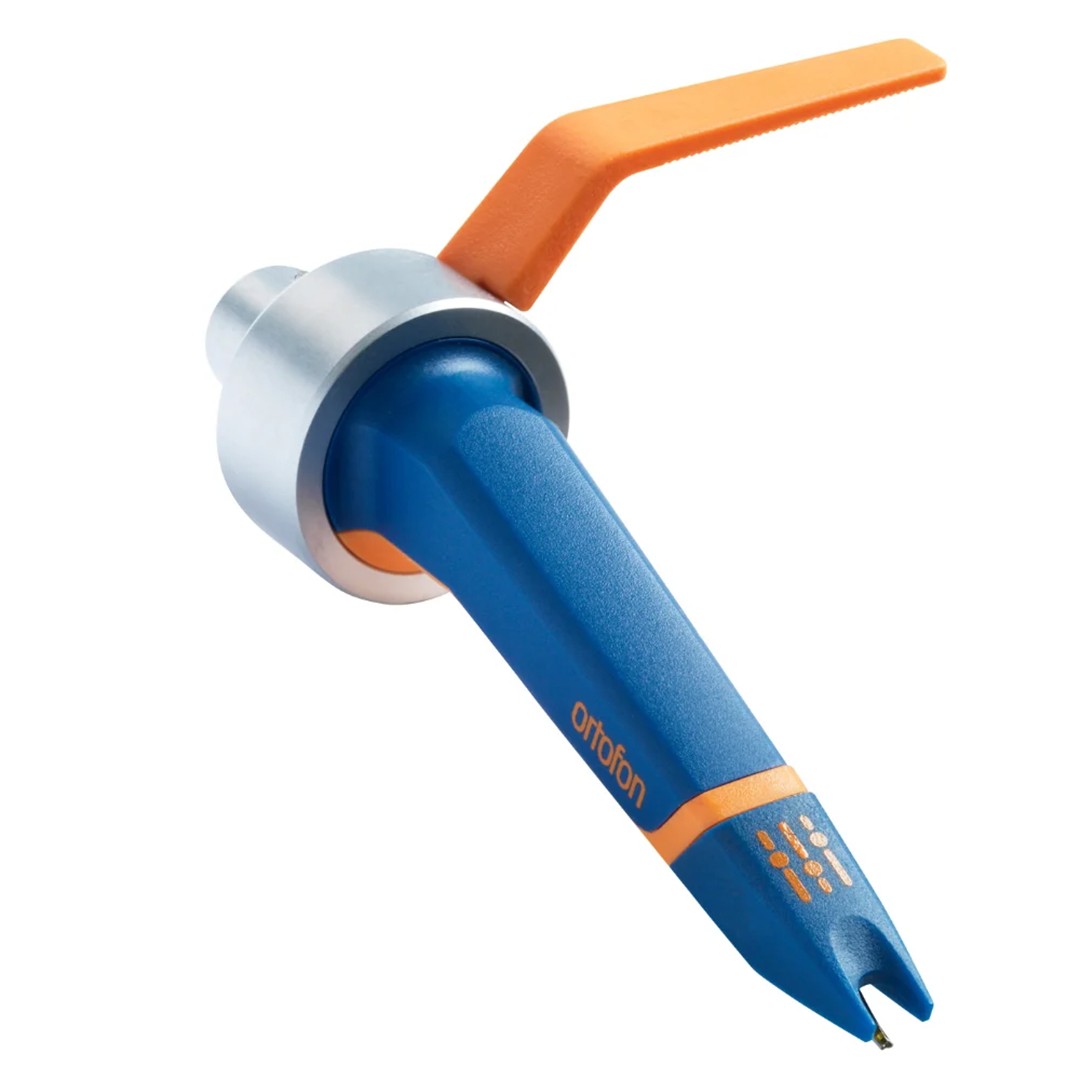

Ortofon CC MKII DJ

Manufacturer ORTOFON Email
Your price: R2300
Normally: R2300
You Save:
Ask a question about this product
The Ortofon Concorde MkII DJ is an all-purpose moving magnet (MM) DJ cartridge engineered for scratch performance, backcueing, and club mixing. Stepping up from the entry-level MIX model, the Concorde DJ features a stiffer cantilever suspension, enhanced tracking ability, and a finely balanced acoustic signature with tight low-end punch and airy top-end detail. Its integrated Concorde design screws directly onto standard SME-bayonet S-shaped tonearms without requiring headshells, lead wires, or alignment tools.

Core Performance Features

  • Enhanced Tracking Stability: Built with a stiffer cantilever suspension that keeps the needle locked inside the record groove during aggressive backcueing, scratch cuts, and beat juggling.

  • Balanced Full-Range Voicing: Offers a flat, dynamic frequency profile with crisp high-end response and tight bass reproduction suitable for any music genre in club booths and studio monitoring setups.

  • Low-Wear Spherical Diamond: Features a precision spherical diamond stylus that rides smoothly in vinyl microgrooves, significantly minimizing record wear during repeated cueing and heavy performance routines.

  • Direct SME Tonearm Mounting: The one-piece Concorde body screws directly into standard SME-bayonet tonearm sockets, eliminating the need for mounting screws, headshell wires, or alignment protractors.

  • Ergonomic Replaceable Finger Lift: Features a wide, textured finger lift designed for steady, slip-free handling in dim club environments, easily replaced if damaged during transit.

  • High Output Voltage: Generates 6 mV of output to drive DJ mixer phono preamps cleanly with a high signal-to-noise ratio and low noise floor.

  • DVS & Real Vinyl Tracking: Fully optimized for clean reproduction on traditional analog vinyl pressings as well as digital vinyl systems (DVS) including Serato DJ Pro, rekordbox DVS, and Traktor Scratch.

Technical Layout & Specifications

  • Cartridge Type: Moving Magnet (MM).

  • Mounting Connection: Direct SME 4-pin bayonet.

  • Stylus Profile: Spherical (R 18 µm).

  • Output Voltage: 6 mV (@ 1 kHz, 5 cm/sec).

  • Frequency Response: 20 Hz – 20,000 Hz.

  • Tracking Force Range: 3.0 g – 5.0 g (30 – 50 mN).

  • Recommended Tracking Force: 4.0 g (40 mN).

  • Tracking Ability: 100 µm (@ 315 Hz at recommended tracking force).

  • Channel Separation: 22 dB (@ 1 kHz).

  • Internal Impedance / DC Resistance: 1,000 Ohms.

  • Internal Inductance: 580 mH.

  • Recommended Load Resistance: 47 kOhms.

  • Recommended Load Capacitance: 200 – 400 pF.

  • Cartridge Weight: 18.5 g.
