DN-200-V2

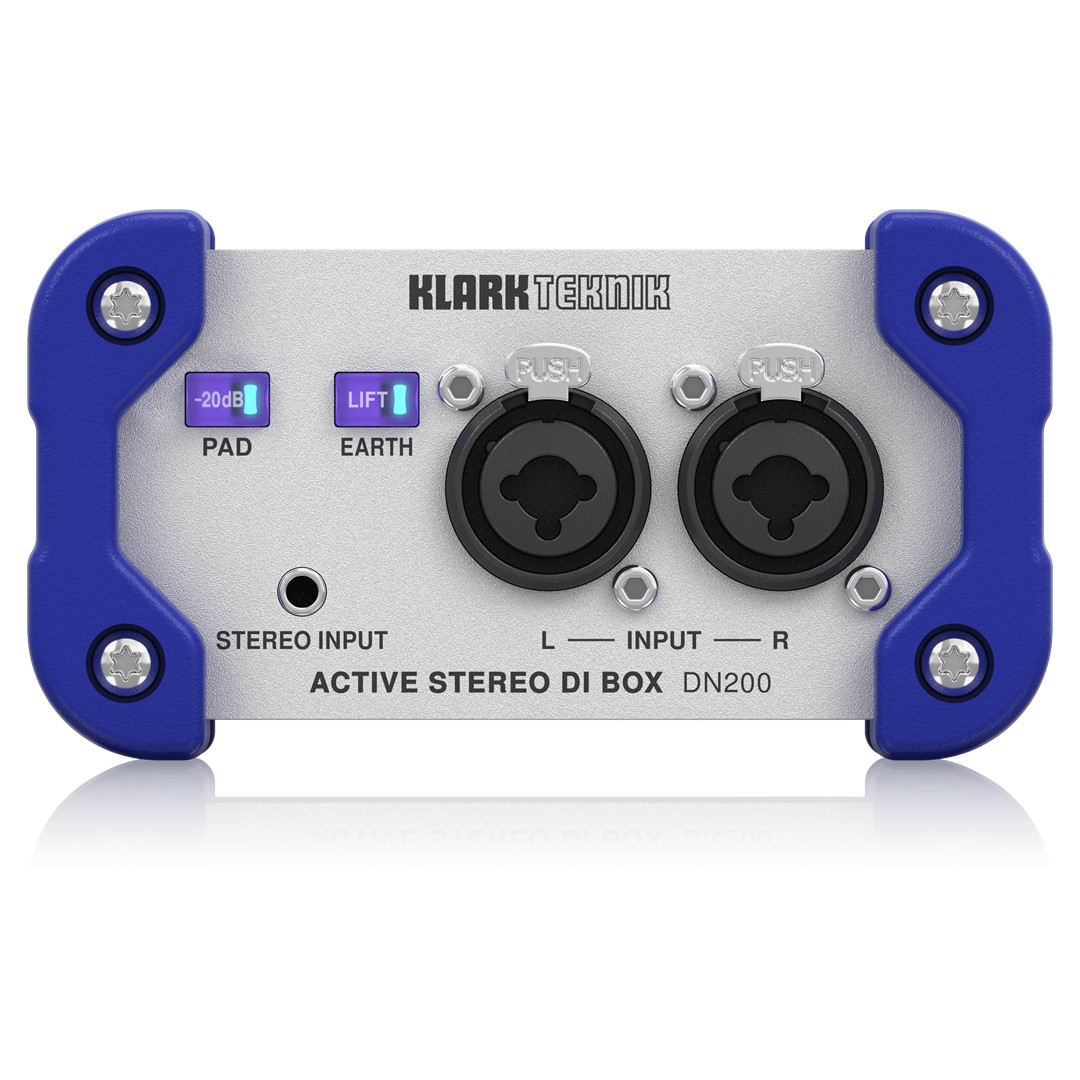

The Klark Teknik DN-200-V2 2-Channel Active DI Box offers superior dynamic range and flexible signal routing options with its fully transformer-isolated design. Ideal for both electric instruments and consumer devices, it features Neutrik Combo XLR, TRS, and stereo inputs, along with illuminated sum, split, and earth lift switches for ease of use in any environment.
Specifications:
Inputs:
- Connectors: 2 x Combo XLR, 2 x 1/4″ TRS link jacks, 1/8″ stereo TRS jack
- Impedance: 1 MΩ (Combo & link jacks balanced), 20 kΩ (Combo XLR only), 500 kΩ (1/8″ stereo TRS unbalanced)
- Max Input Level: 28 dBu (Combo XLR & TRS link jacks with pad), 21 dBu (1/8″ TRS with pad)
- Attenuator: 20 dB pad
Outputs:
- Connectors: 2 x 3-pin XLR
- Impedance: 50 Ω
- Max Output Level: 13 dBu (10 kΩ load), 10 dBu (600 Ω load)
- Min Load: 600 Ω
System:
- Noise: -103 dBu (22 Hz to 22 kHz unweighted, input terminated by 10 kΩ resistor)
- Frequency Response: 20 Hz to 20 kHz, ±1 dB (10 kΩ load)
- Distortion (THD + N): Typically <0.005% @ 1 kHz, +10 dBu
- Crosstalk: <100 dB @ 1 kHz (inputs terminated)
Power Requirements:
- Voltage: +48 V phantom
- Current Consumption: <10 mA per channel
Physical:
- Dimensions: 118 x 63 x 142 mm (4.7 x 2.5 x 5.6″)
- Weight: 0.65 kg (1.43 lbs)
