DM-12

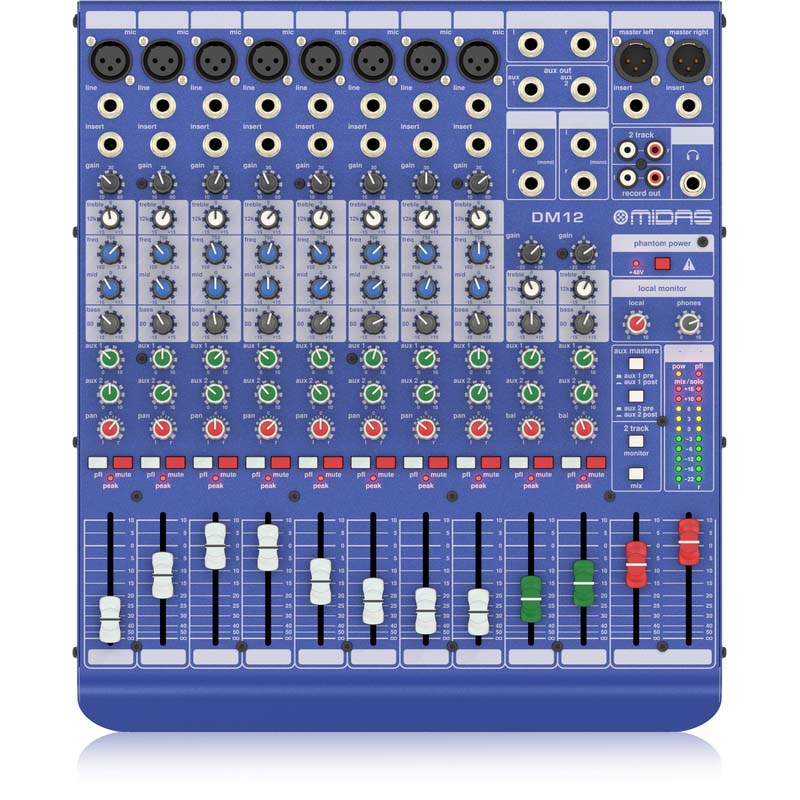

The Midas DM-12 Analogue Live and Studio Mixer is a versatile audio solution featuring 12 input channels, including 8 award-winning MIDAS microphone preamplifiers. Designed for both live performances and studio recordings, it offers a 3-band EQ, aux sends, and durable construction. With intuitive controls and global compatibility, the DM12 ensures exceptional audio quality and reliable performance in any setting.
Specifications:
- Mono Inputs:
- Type: XLR, balanced
- MIDAS microphone preamplifiers: 8 channels
- Gain Range: +10 dB to +60 dB
- Frequency Response: 20 Hz to 20 kHz (-1 dB), 70 kHz (-3 dB)
- Phantom Power: +48V switchable
- EQ: 3-band EQ (Low, Mid, High)
- Low: ±15 dB @ 80 Hz, shelving
- Mid: ±15 dB @ 150 Hz to 3.5 kHz, variable semi-parametric
- High: ±15 dB @ 12 kHz, shelving
- Aux Sends: 2 x ¼” TRS connector, balanced
- Inserts: ¼” TRS connector, unbalanced
- Faders: 60 mm mono channel fader
- Stereo Inputs:
- Type: ¼” TRS connector, balanced
- Gain Range: -20 dB to +20 dB
- EQ: 3-band EQ (Low, High)
- Low: ±15 dB @ 80 Hz, shelving
- High: ±15 dB @ 12 kHz, shelving
- Aux Sends: 2 x ¼” TRS connector, balanced
- Balance Control: Yes
- Faders: 60 mm stereo channel fader
- Outputs:
- Main Outputs: 2 x XLR, electronically balanced
- Monitor Outputs: 2 x ¼” TRS connector, balanced
- 2-Track Outputs: 2 x RCA, unbalanced
- Phones Output: ¼” TRS connector, unbalanced
- Additional Features:
- Peak LED indicators on channels
- PFL (Pre Fader Listen) switch on channels
- LED metering for main mix levels
- Internal switch-mode power supply, 100-240V AC, 50/60 Hz
- Dimensions: 95 mm (H) x 328 mm (W) x 370 mm (D)
- Weight: 3.9 kg (1.8 lbs)
